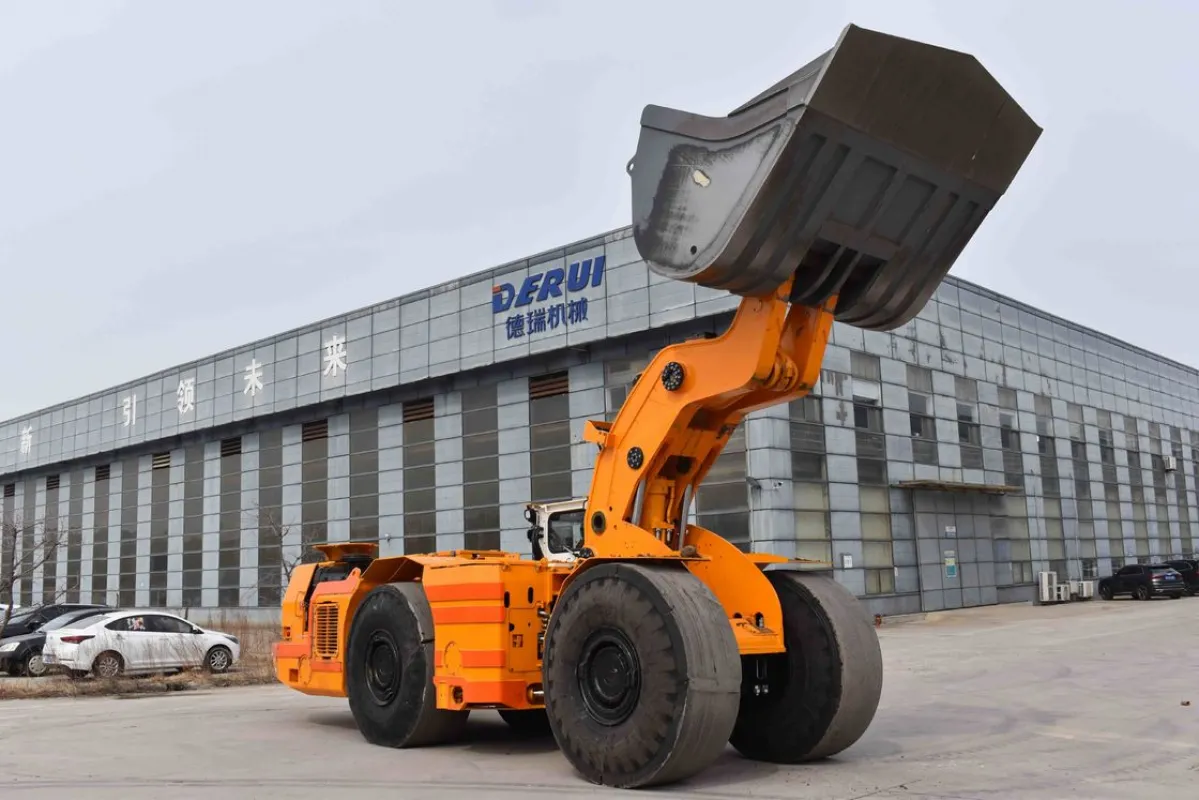

Diesel underground loader DERUI DRWJ-6

Основные параметры

Model	DRWJ-6
Bucket volume, m³	6 m³
Operating weight, kg	40 400 кг
Rated load capacity	14 000 кг
Bucket digging force, kN	≥240 kN
Max. traction force, kN	≥320 kN
Overall dimensions (L×W×H), mm	10 652 × 2 792 × 2 552 mm
Minimum ground clearance, mm	385 мм
Max. unloading height, mm	2 384 мм
Min. unloading distance	1 743 мм
Rotation angle	42,5°
Unloading angle	39°
Departure angle	≥15°
Rear axle oscillation angle	±8° ~ ±10°
Min. turning radius (outer)	6 932 мм
Max. turning radius (inside)	3 283 мм
Bucket cycle time	rise 8.5 s; lowering 3.9 s; unloading 2.0 s
Travel speed, high/low, km/h	1st 4.5 km/h; 2nd 7.9 km/h; 3rd 13.0 km/h; 4th 21.5 km/h (VOLVO TAD1 351 VE)

Двигатель

Двигатель

Engine model	VOLVO TAD1 351 VE
Engine power, kW	285 kW @ 1 900 rpm
Max. torque, Nm at rpm	1 965 Nm @ 1 200 rpm
Number of cylinders	6
Working volume, l	12,78 л
Engine cooling system	Vodyanoye
Engine operating principle	4-stroke, direct injection, turbocharged with intercooling
Suction	Dry, pre-filter + two-stage filtration
Injection control system	Electronic
On-board voltage	24 В
Ecological engine class	Euro III, certificate 96R-32 942H
Exhaust system	DOC + POC + muffler
Fuel consumption at 50% load	40.5 l/h
Motor protection	Automatic shutdown when low oil pressure or overheating

Топливный бак

Fuel tank capacity, l

420 л

Шасси

Трансмиссия

Torque converter	Dana C9 000, without blocking
Transmission	Dana R6 000, automatic transmission, electric control, APC; 4B/4H
Front and rear axle	Kessler D106 / Dana 53R; planetary gearbox; No-Spin

Колёсная ходовая

Tire markings

L-5S 26.5-25

Тормозная система

Brake system

Enclosed disc brakes in an oil bath; parking/emergency: spring, hydraulic pressing

Гидросистема

RVD	DIN fittings; protective braids on hose hoses in open areas and in places of contact with the frame, components and assemblies

Гидронасос

Work and steering pump

Rexroth

Распределитель

Foot valve	Mico
Multi-way valve	Parker
Steering valve	Parker
Feed valve	Parker

Гидравлический бак

Hydraulic tank capacity, l

230 l, oil level inspection windows

Электрооборудование

Batteries	2×12 В / 120 А·ч
Display	7″ color

Освещение

Headlights	4 pcs. × 27 W
Tail lights	4 pcs. × 27 W
Reverse horn	112 dB
Yellow flashing light	1 piece
LED flashing light	yellow
