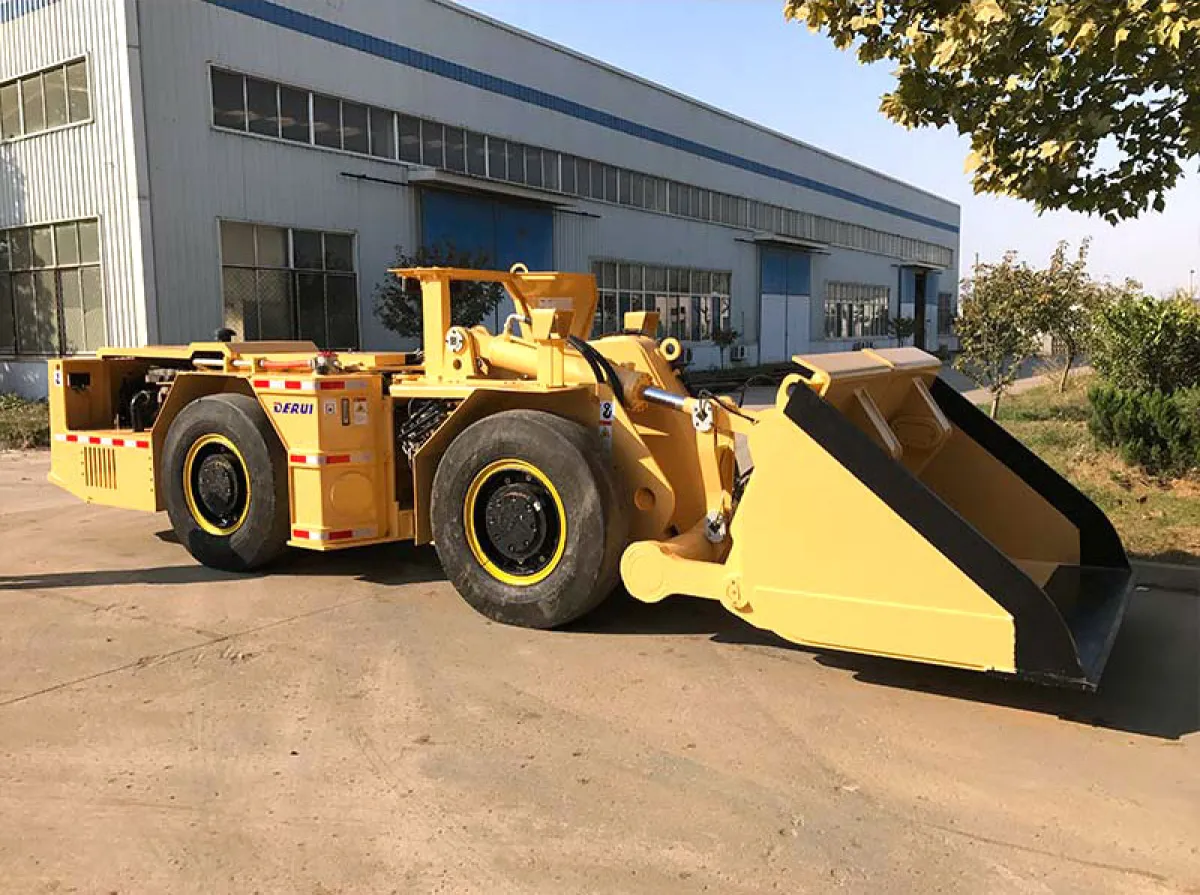

Diesel underground loader DERUI DRWJ-2

Основные параметры

Model	DRWJ-2
Drive type	Diesel
Machine type	Underground Loading and Delivery Facility (LHD)
Bucket volume, m³	2
Operating weight, kg	12 500
Rated load capacity	4 000 кг
Overall dimensions (L×W×H), mm	7 309 × 1 816 × 2 038
Max. unloading height, mm	1 740
Rotation angle	±38°
Overcome slope, %	25 (full load)
Min. turning radius (outer)	5 300 мм
Max. turning radius (inside)	2 800 мм
Bucket cycle time	11 s (lifting and tipping - according to the manufacturer)
Travel speed, high/low, km/h	3.93–25.97 km/h (according to the equipment specification; DEUTZ F6L914 / BF6L914 engine)

Двигатель

Двигатель

Engine model	DEUTZ F6L914 / BF6L914 (optional options: BF4M1 013EC, etc.)
Engine power, kW	84–112 @ 2 300
Max. torque, Nm at rpm	According to the engine configuration data sheet
Number of cylinders	6
Working volume, l	≈6.5 (typical for the F6L914 series; check the data sheet)
Engine cooling system	Vodyanoye
Engine operating principle	4-stroke diesel with direct injection
Suction	Dry type air filter; prefiltration + two-stage filtration (optional)
Injection control system	Mechanical / electronic governor (according to engine configuration)
On-board voltage	24 В
Ecological engine class	Euro II / Euro III (optional)
Exhaust system	By configuration (catalysts / supply market)
Motor protection	Monitoring and emergency shutdown system (optional)

Топливный бак

Fuel tank capacity, l

According to the configuration passport

Платформа

Complete documentation

Operating manual, catalog of spare parts, maintenance (according to the scope of delivery)

Шасси

Трансмиссия

Torque converter	Dana (no blocking)
Transmission	Dana 32 000, automatic (according to manufacturer)
Front and rear axle	Planetary rigid drive axles

Колёсная ходовая

Tire markings

According to the delivery package (vehicle width with tires 1 816 mm)

Тормозная система

Brake system

SAHR disc brakes: spring actuation, hydraulic release (according to manufacturer)

Гидросистема

RVD	According to the delivery set (DIN, protective braids)

Гидронасос

Work and steering pump

According to the delivery package

Распределитель

Multi-way valve	According to the delivery package
Steering valve	According to the delivery package
Feed valve	According to the delivery package
Foot valve	According to the delivery package

Гидравлический бак

Hydraulic tank capacity, l

According to the configuration passport

Электрооборудование

Batteries	According to the delivery package
Display	According to the delivery package

Освещение

Headlights	According to the delivery package
Tail lights	According to the delivery package
Reverse horn	According to the delivery package
Yellow flashing light	According to the delivery package
LED flashing light	According to the delivery package

Кабина оператора

Operator cabin (FOPS/ROPS, climate control)	According to the delivery package
Cabin windows	According to the delivery package
Controls	According to the delivery package (hydraulic / remote - option)
Operator display	According to the delivery package
Operator seat	According to the delivery package
