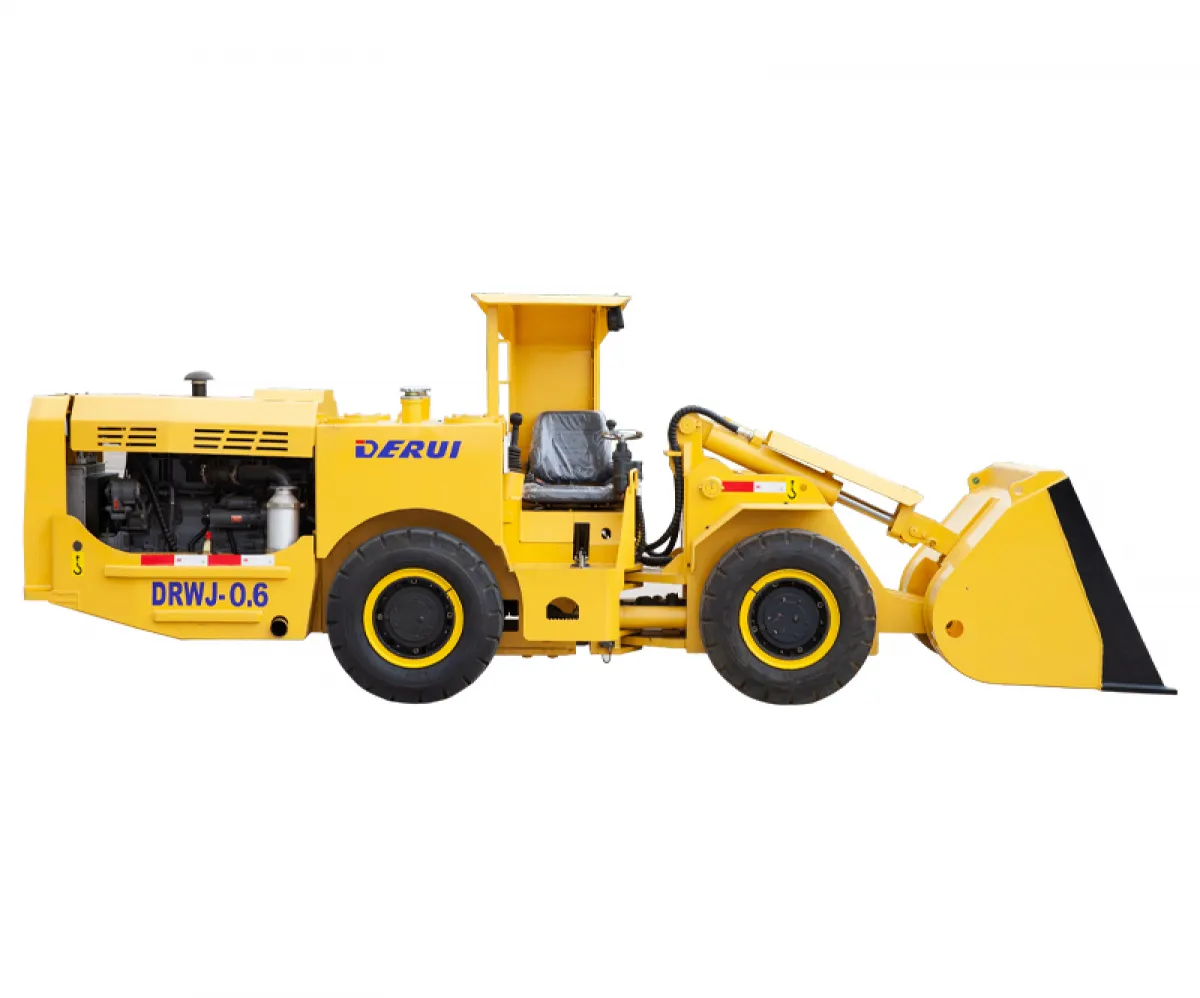

Diesel underground loader DERUI DRWJ-0.6

Основные параметры

Model	DRWJ-0.6
Drive type	Diesel
Machine type	Underground Loading and Delivery Facility (LHD)
Bucket volume, m³	0,6
Operating weight, kg	4 600
Rated load capacity	1 200 кг
Bucket digging force, kN	≥32 (review source; not specified in the table pacificsg.ru / derui.org)
Max. traction force, kN	42
Overall dimensions (L×W×H), mm	4 950 × 1 150 × 2 000
Max. unloading height, mm	800
Min. unloading distance	690 mm (in the passport: max. unloading distance)
Rotation angle	38°
Departure angle	16°
Overcome slope, %	20° (according to the table pacificsg.ru / derui.org)
Rear axle oscillation angle	±8°
Min. turning radius (outer)	3 350 mm
Max. turning radius (inside)	1 830 mm
Bucket cycle time	12 s (review source lhdloaders.com; check your passport)
Travel speed, high/low, km/h	0–9 km/h (DEUTZ BF4L2 011 / Cummins B3.3 - according to the table)

Двигатель

Двигатель

Engine model	DEUTZ BF4L2 011 (original) / Cummins B3.3 (original); DEUTZ BF4L914 / F4L914 / D914L04; Yanmar 4TNY98 - by derui.org
Engine power, kW	47.5 (BF4L2 011) / 60 (Cummins B3.3) - according to the table pacificsg.ru / derui.org
Max. torque, Nm at rpm	According to the engine configuration data sheet
Number of cylinders	4 (according to passport)
Working volume, l	According to the engine configuration data sheet
Engine cooling system	Air / liquid - according to engine configuration
Engine operating principle	4-stroke diesel
Suction	By engine configuration
Injection control system	By engine configuration
On-board voltage	24 В
Ecological engine class	By configuration (DOC; catalysts Donaldson, MAN, etc. - derui.org)
Exhaust system	According to the delivery package
Motor protection	According to the delivery package

Топливный бак

Fuel tank capacity, l

According to the configuration passport

Платформа

Complete documentation

Operating manual, catalog of spare parts, maintenance (according to the scope of delivery)

Шасси

Трансмиссия

Torque converter	No (hydrostatic drive)
Transmission	Hydraulic pump and hydraulic motor Danfoss or Linde (by derui.org)
Front and rear axle	DERUI OEM (by derui.org)

Колёсная ходовая

Tire markings

According to the delivery package

Тормозная система

Brake system

SAHR via hydrostatic transmission (via derui.org)

Гидросистема

RVD	According to the delivery set (DIN, protective braids)

Гидронасос

Work and steering pump

According to the delivery package

Распределитель

Multi-way valve	According to the delivery package
Steering valve	According to the delivery package
Feed valve	According to the delivery package
Foot valve	According to the delivery package

Гидравлический бак

Hydraulic tank capacity, l

According to the configuration passport

Электрооборудование

Batteries	According to the delivery package
Display	According to the delivery package

Освещение

Headlights	According to the delivery package (LED - derui.org)
Tail lights	According to the delivery package
Reverse horn	According to the delivery package
Yellow flashing light	According to the delivery package
LED flashing light	According to the delivery package

Кабина оператора

Operator cabin (FOPS/ROPS, climate control)	According to the delivery package
Cabin windows	According to the delivery package
Controls	Hydraulic; remote - option (derui.org)
Operator display	According to the delivery package
Operator seat	According to the delivery package
