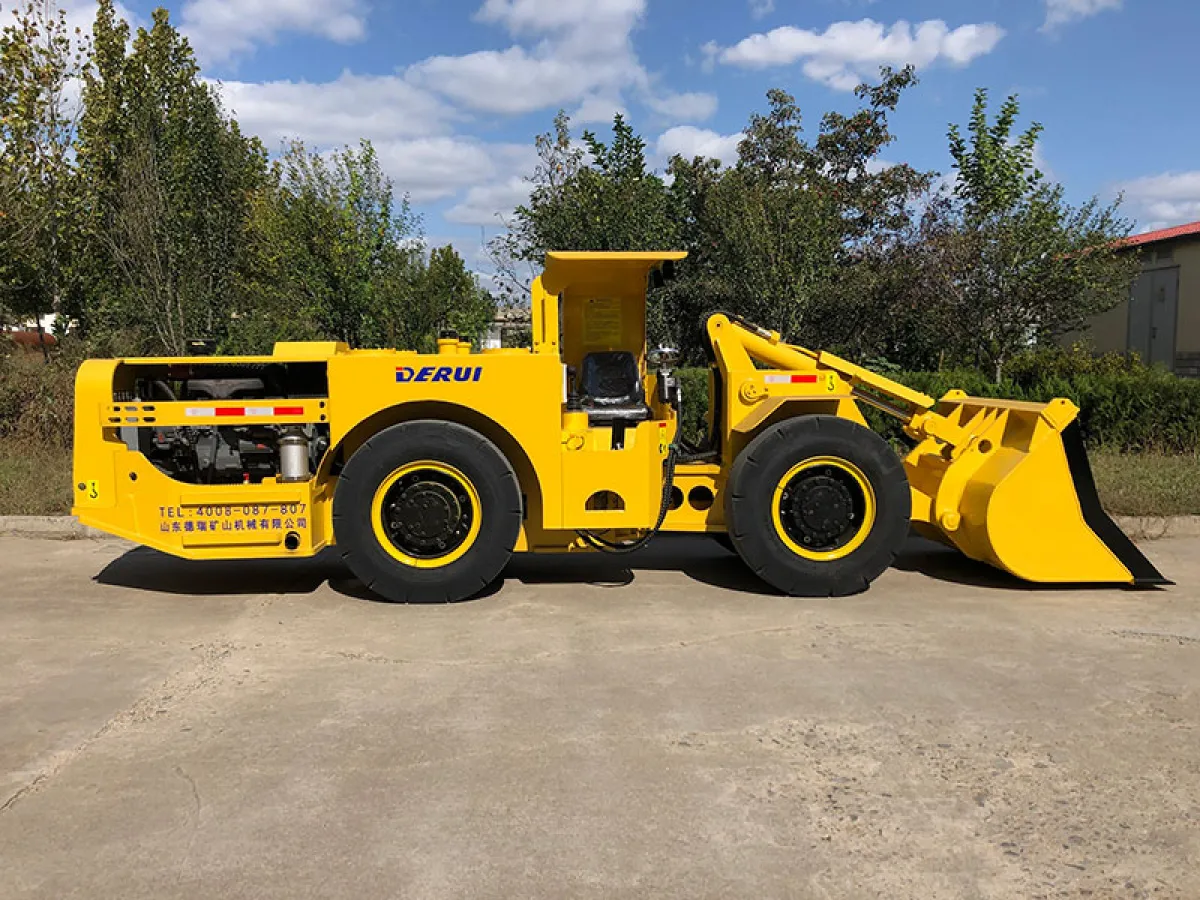

Diesel underground loader DERUI DRWJ-1

Основные параметры

Model	DRWJ-1
Drive type	Diesel
Machine type	Underground Loading and Delivery Facility (LHD)
Bucket volume, m³	1
Operating weight, kg	6 800
Rated load capacity	2 000 кг
Bucket digging force, kN	≥48 (review source; check with your passport)
Max. traction force, kN	54
Overall dimensions (L×W×H), mm	5 880 × 1 300 × 2 000
Max. unloading height, mm	1 180
Rotation angle	38°
Departure angle	16°
Overcome slope, %	25° (according to the table pacificsg.ru / derui.org)
Rear axle oscillation angle	±8°
Min. turning radius (outer)	4 260 мм
Max. turning radius (inside)	2 150 мм
Bucket cycle time	According to the delivery package
Travel speed, high/low, km/h	0–8 km/h (according to the table pacificsg.ru / derui.org)

Двигатель

Двигатель

Engine model	DEUTZ BF4L914 / F4L914 / D914L04; Cummins B3.3; Deutz TD3.6 L4; Yanmar 4TNY98T and others (by derui.org)
Engine power, kW	45 kW (according to the table pacificsg.ru / derui.org); other configuration options
Max. torque, Nm at rpm	According to the engine configuration data sheet
Number of cylinders	4 (typically BF4L914; according to the passport)
Working volume, l	≈4.3 (BF4L914; according to the passport)
Engine cooling system	Air / liquid - according to engine configuration
Engine operating principle	4-stroke diesel
Suction	By engine configuration
Injection control system	By engine configuration
On-board voltage	24 В
Ecological engine class	By configuration (catalysts Donaldson, MAN, etc. - derui.org)
Exhaust system	According to the delivery package
Motor protection	According to the delivery package

Топливный бак

Fuel tank capacity, l

According to the configuration passport

Платформа

Complete documentation

Operating manual, catalog of spare parts, maintenance (according to the scope of delivery)

Шасси

Трансмиссия

Torque converter	No (hydrostatic drive)
Transmission	Hydraulic pump and hydraulic motor Danfoss or Linde (by derui.org)
Front and rear axle	DERUI OEM / Meritor (optional)

Колёсная ходовая

Tire markings

10–20

Тормозная система

Brake system

SAHR via hydrostatic transmission (via derui.org)

Гидросистема

RVD	According to the delivery set (DIN, protective braids)

Гидронасос

Work and steering pump

According to the delivery package

Распределитель

Multi-way valve	According to the delivery package
Steering valve	According to the delivery package
Feed valve	According to the delivery package
Foot valve	According to the delivery package

Гидравлический бак

Hydraulic tank capacity, l

According to the configuration passport

Электрооборудование

Batteries	According to the delivery package
Display	According to the delivery package

Освещение

Headlights	According to the delivery package
Tail lights	According to the delivery package
Reverse horn	According to the delivery package
Yellow flashing light	According to the delivery package
LED flashing light	According to the delivery package

Кабина оператора

Operator cabin (FOPS/ROPS, climate control)	According to the delivery package
Cabin windows	According to the delivery package
Controls	Hydraulic; remote - option (derui.org)
Operator display	According to the delivery package
Operator seat	According to the delivery package
