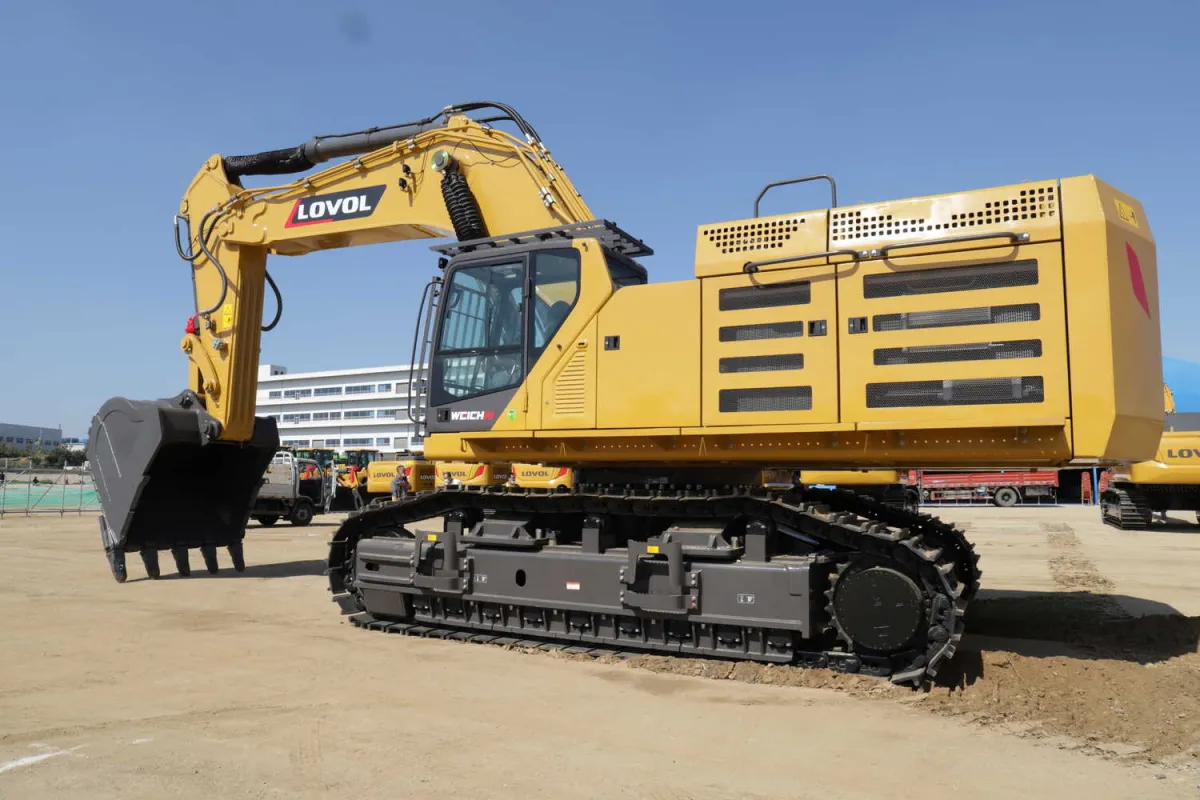

Crawler excavator FR700F
Tracked
Crawler excavator FR700F
Operating weight, kg
68 500
Engine power, kW
566 (at 1 900 rpm)
Bucket volume, m³
4.4 (rock bucket)
Maximum digging depth, mm
7 170
Основные параметры
| Operating weight, kg | 68 500 |
| Bucket volume, m³ | 4.4 (rock bucket) |
| Maximum digging depth, mm | 7 170 |
| Bucket cutting force, kN | 374 |
| Track width, mm | 2 830 |
| Extension of the rear part of the superstructure, mm | 4 120 |
| Number of road wheels, pcs. | 9 |
| Specific ground pressure, kPa | 111 |
| Handle length, mm | 2 800 |
| Handle cutting force, kN | 320 |
| Boom length, mm | 6 800 |
| Chassis length, mm | 5 700 |
| Maximum cutting height, mm | 11 300 |
| Track width, mm | 3 350 |
| Overall height, mm | 4 750 |
| Control circuit pressure, mPa | 3.9 |
| Overall length, mm | 12 550 |
| Overall width, mm | 4 350 |
| Support length of track on the ground, mm | 4 570 |
Двигатель
Двигатель
| Engine power, kW | 566 (at 1 900 rpm) |
| Working volume, l | 15.33 |
| Number of cylinders | 6 |
Топливный бак
| Fuel tank capacity, l | 940 |
Платформа
| Counterweight weight, kg | 10 200 |
Гидросистема
Гидронасос
| Max. hydraulic pump flow, l/min | 1 020 |
Поворотный мотор
| Turning circuit pressure, mPa | 31.3 |
Бортовой редуктор
| Stroke circuit pressure, mPa | 34.3 |
Гидравлический бак
| Hydraulic tank capacity, l | 640 |
