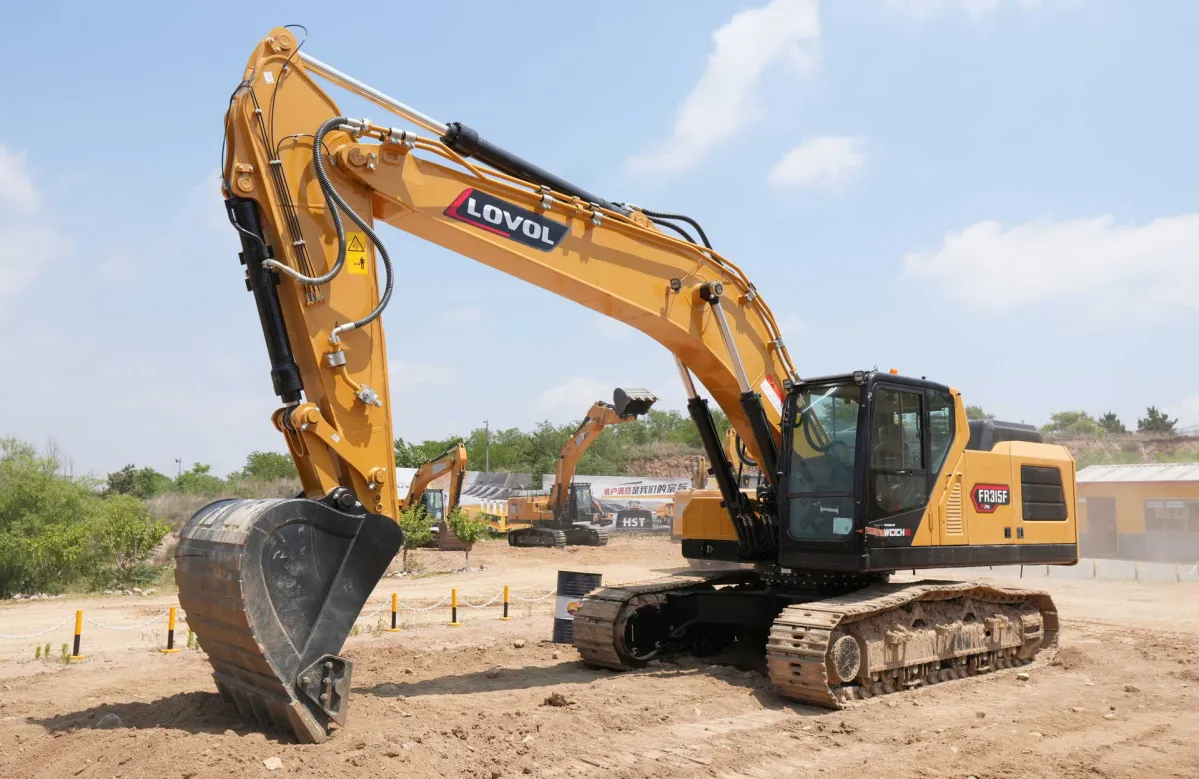

Crawler excavator FR315F
Tracked
Crawler excavator FR315F
Operating weight, kg
31 300
Engine power, kW
228 (at 1 600 rpm)
Bucket volume, m³
1.7
Maximum digging depth, mm
6 806
Основные параметры
| Operating weight, kg | 31 300 |
| Bucket volume, m³ | 1.7 |
| Maximum digging depth, mm | 6 806 |
| Bucket cutting force, kN | 213 |
| Track width, mm | 2 590 |
| Extension of the rear part of the superstructure, mm | 3 453 |
| Number of road wheels, pcs. | 8 |
| Number of support rollers, pcs. | 2 |
| Specific ground pressure, kPa | 61,6 |
| Handle length, mm | 2 900 |
| Handle cutting force, kN | 171 |
| Boom length, mm | 6 200 |
| Maximum cutting height, mm | 10 277 |
| Track width, mm | 3 190 |
| Pressure of working equipment circuits, mPa | 34,3 |
| Overall height, mm | 3 348 |
| Overall length, mm | 10 882 |
| Overall width, mm | 3 190 |
Двигатель
Двигатель
| Engine power, kW | 228 (at 1 600 rpm) |
| Number of cylinders | 6 |
| Max. torque, Nm at rpm | 1 310 (at 2 000 rpm) |
Топливный бак
| Fuel tank capacity, l | 505 |
Платформа
| Counterweight weight, kg | 5 700 |
Гидросистема
Гидронасос
| Max. hydraulic pump flow, l/min | 300 (x2) |
Поворотный мотор
| Turning circuit pressure, mPa | 27 |
Гидравлический бак
| Hydraulic tank capacity, l | 316 |
