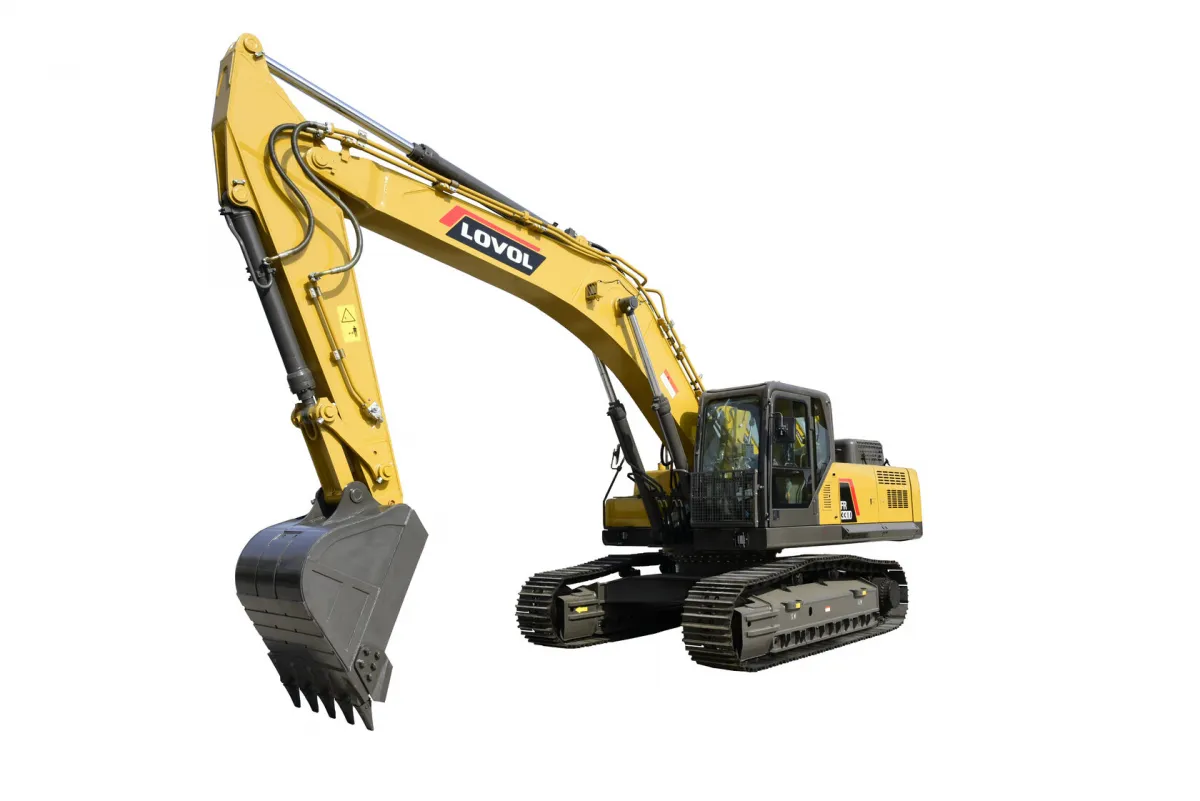

Crawler excavator FR335F

Основные параметры

Operating weight, kg	33 250
Travel speed, high/low, km/h	5,6 / 3,5
Platform rotation speed, rpm	9,5
Boom length, mm	6 200
Handle length, mm	2 900
Bucket digging force, kN	208
Handle digging force, kN	158
Max. traction force, kN	257
Overcome slope, %	35°
Specific ground pressure, kPa	61
Bucket volume, m³	1.8

Двигатель

Двигатель

Engine Manufacturer	Cummins
Engine model	6LTAA8.9
Number of cylinders	6
Air supply system	Charge and intercooling, common track (Common rail)
Working volume, l	8,9
Max. torque, Nm at rpm	1 230 / 1 400
Engine power, kW	225 at 2 000

Моторное масло

Engine oil capacity, l

19

Топливный бак

Fuel tank capacity, l

580

Платформа

Platform type

Side mounted with tail section

Шасси

Chassis type

Fixed rail, X-frame

Гусеница

Track width, mm

600 (three-rib track); 49 links

Опорный каток

Number of road wheels (one side)

9

Гидросистема

Гидронасос

Hydraulic pump manufacturer	Kawasaki
Hydraulic pump model	KSV160
Max. hydraulic pump flow, l/min	646
Hydraulic pump type	Series coupled pumps with pistons and swashplate

Распределитель

Distributor manufacturer	Kawasaki
Distributor model	KMX15RB, 1 piece, modular
Max. distributor flow, l/min	646

Поворотный мотор

Slewing Motor Manufacturer	Kawasaki
Rotary motor model	M5X180CHB
Rotary motor circuit pressure, MPa	26

Бортовой редуктор

Final drive manufacturer	Nabco
Final drive model	GM60VA, 2 pcs.
Final drive circuit pressure, MPa	34,3

Давление ГПК

GPC pressure, MPa

34,3

Гидравлический бак

Hydraulic tank capacity, l

316
