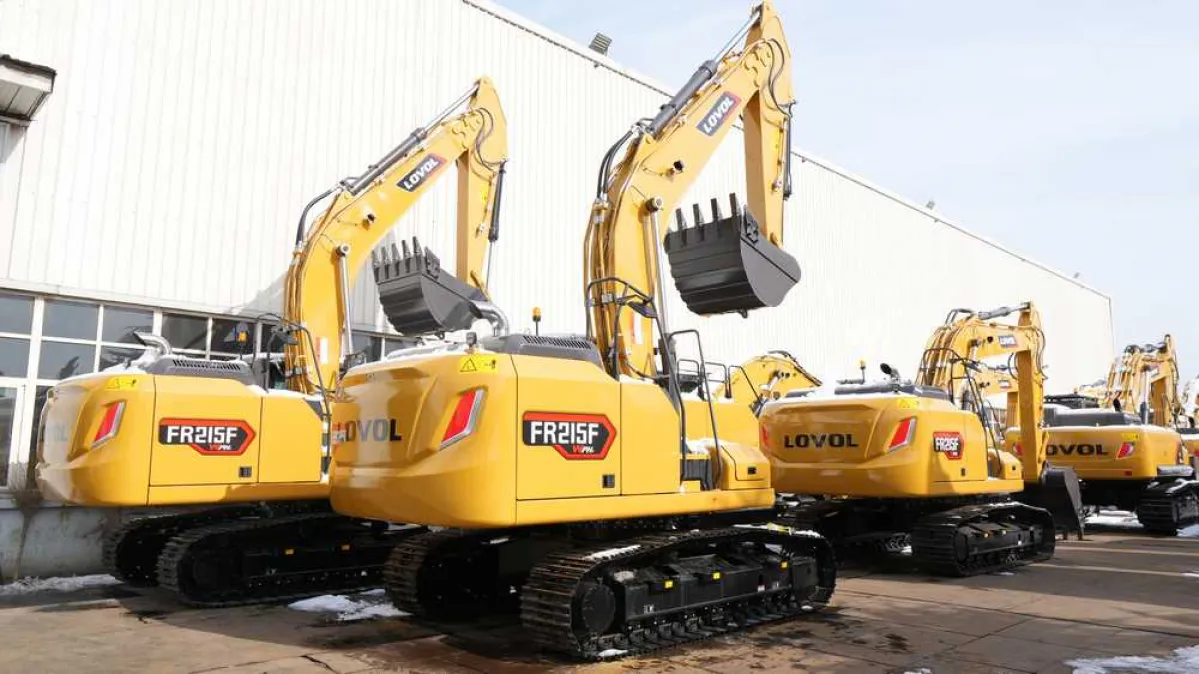

Crawler excavator FR215F
Tracked
Crawler excavator FR215F
Operating weight, kg
21 600
Engine power, kW
123 (at 2 000 rpm)
Bucket volume, m³
1.1
Maximum digging depth, mm
6 630
Основные параметры
| Operating weight, kg | 21 600 |
| Bucket volume, m³ | 1.1 |
| Maximum digging depth, mm | 6 630 |
| Bucket cutting force, kN | 133 |
| Track width, mm | 2 200 |
| Extension of the rear part of the superstructure, mm | 2 980 |
| Number of road wheels, pcs. | 7 |
| Number of support rollers, pcs. | 2 |
| Specific ground pressure, kPa | 37 |
| Handle length, mm | 2 925 |
| Handle cutting force, kN | 106 |
| Boom length, mm | 5 700 |
| Chassis length, mm | 4 180 |
| Maximum cutting height, mm | 9 915 |
| Maximum excavation distance, mm | 9 660 |
| Track width, mm | 2 800 |
| Pressure of working equipment circuits, mPa | 34,3 |
| Overall height, mm | 3 322 |
| Pressure of the circuit with a higher load capacity, mPa | 34,3/40 |
| Control circuit pressure, mPa | 3.9 |
| Overall length, mm | 9 680 |
| Overall width, mm | 2 800 |
| Support length of track on the ground, mm | 3 275 |
Двигатель
Двигатель
| Engine power, kW | 123 (at 2 000 rpm) |
| Working volume, l | 4.58 |
| Number of cylinders | 4 |
| Max. torque, Nm at rpm | 680 (at 1 600 rpm) |
Моторное масло
| Engine cooling system, l | 30 |
Топливный бак
| Fuel tank capacity, l | 385 |
Платформа
| Counterweight weight, kg | 4 016 |
Гидросистема
Гидронасос
| Max. hydraulic pump flow, l/min | 207.8 (x2) |
Поворотный мотор
| Turning circuit pressure, mPa | 24.5 |
Бортовой редуктор
| Stroke circuit pressure, mPa | 34.3 |
Гидравлический бак
| Hydraulic tank capacity, l | 206 |
