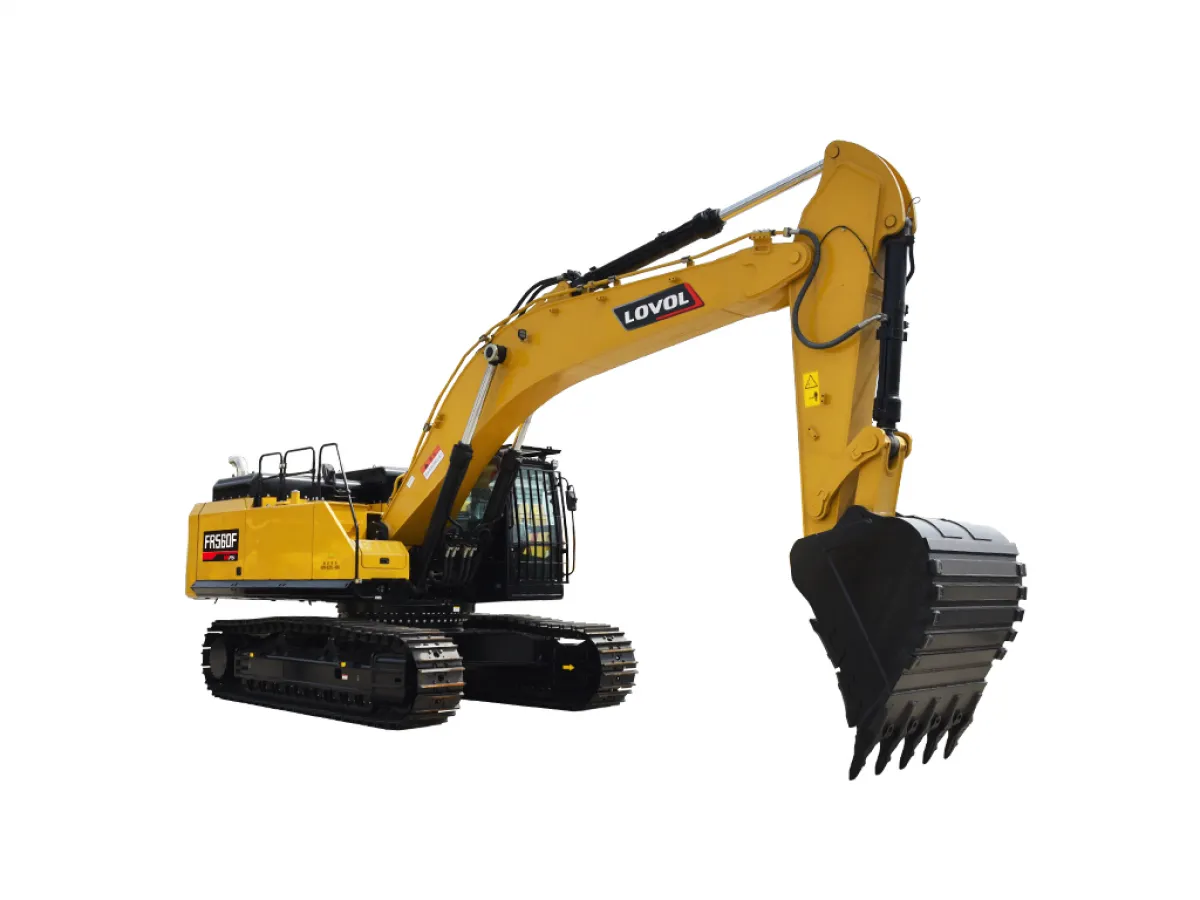

Crawler excavator FR560F
Tracked
Crawler excavator FR560F
Operating weight, kg
53 000
Engine power, kW
562
Bucket volume, m³
3.2 (rock bucket)
Maximum digging depth, mm
7 172
Основные параметры
| Operating weight, kg | 53 000 |
| Bucket volume, m³ | 3.2 (rock bucket) |
| Maximum digging depth, mm | 7 172 |
| Bucket cutting force, kN | 320 |
| Track width, mm | 2 740 |
| Number of road wheels, pcs. | 9 |
| Number of support rollers, pcs. | 2 |
| Specific ground pressure, kPa | 89 |
| Handle length, mm | 2 900 |
| Handle cutting force, kN | 250 |
| Boom length, mm | 6 900 |
| Chassis length, mm | 5 116 |
| Maximum cutting height, mm | 11 544 |
| Maximum excavation distance, mm | 11 317 |
| Track width, mm | 3 490 |
| Pressure of working equipment circuits, mPa | 34,3 |
| Overall height, mm | 3 907 |
| Overall length, mm | 12 205 |
| Overall width, mm | 3 340 |
| Support length of track on the ground, mm | 4 430 |
Двигатель
Двигатель
| Engine power, kW | 562 |
| Working volume, l | 13.5 |
| Number of cylinders | 6 |
| Max. torque, Nm at rpm | 2 900 (at 1 200-1 500 rpm) |
Топливный бак
| Fuel tank capacity, l | 780 |
Платформа
| Counterweight weight, kg | 11 121 |
Гидросистема
Гидронасос
| Max. hydraulic pump flow, l/min | 425.5 (x2) |
Гидравлический бак
| Hydraulic tank capacity, l | 380 |
Advantages of purchasing from us
Official guarantee
Full warranty from the manufacturer with service support in Kazakhstan
Leasing and installments
Flexible financing terms - leasing and installments
Service and spare parts
Own service center and warehouse of original spare parts
Delivery within the Republic of Kazakhstan
Prompt delivery of equipment to any region of Kazakhstan
