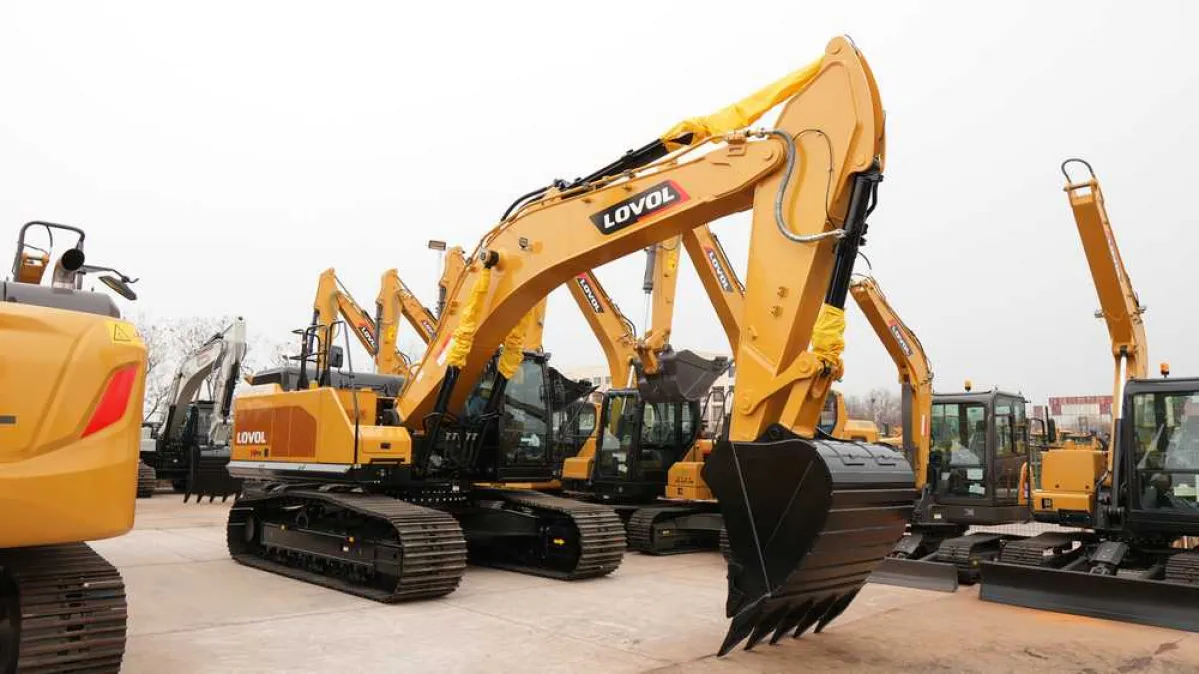

Crawler excavator FR375F
Tracked
Crawler excavator FR375F
Operating weight, kg
37 270
Travel speed, high/low, km/h
5,5 / 3,3
Platform rotation speed, rpm
8,9
Boom length, mm
6 500
Основные параметры
| Operating weight, kg | 37 270 |
| Travel speed, high/low, km/h | 5,5 / 3,3 |
| Platform rotation speed, rpm | 8,9 |
| Boom length, mm | 6 500 |
| Handle length, mm | 2 800 |
| Bucket digging force, kN | 221 |
| Handle digging force, kN | 192 |
| Max. traction force, kN | 234,2 |
| Overcome slope, % | 70 |
| Specific ground pressure, kPa | 68,2 |
| Bucket volume, m³ | 2 |
Двигатель
Двигатель
| Engine Manufacturer | WEICHAI |
| Engine model | WP10.5H |
| Number of cylinders | 6 |
| Air supply system | Turbocharging |
| Working volume, l | 10,5 |
| Max. torque, Nm at rpm | 1 470 / 1 300 |
| Engine power, kW | 247 at 2 000 |
Моторное масло
| Engine oil capacity, l | 30 |
Топливный бак
| Fuel tank capacity, l | 640 |
Платформа
| Platform type | The counterweight extends beyond the chassis |
Шасси
| Chassis type | X-shaped with fixed track |
Гусеница
| Track width, mm | 600 |
Опорный каток
| Number of road wheels (one side) | 9 |
Гидросистема
Гидронасос
| Hydraulic pump manufacturer | LINDE |
| Hydraulic pump model | HPR210D |
| Max. hydraulic pump flow, l/min | 650,4 |
| Hydraulic pump type | Axial piston variable pump*2+Gear pump |
Распределитель
| Distributor manufacturer | LINDE |
| Distributor model | OCV32 |
| Max. distributor flow, l/min | 378×2 |
Поворотный мотор
| Rotary motor model | HM5X180 |
| Rotary motor circuit pressure, MPa | 32,4 |
Бортовой редуктор
| Final drive manufacturer | EDDIE |
| Final drive model | FTM60A |
| Final drive circuit pressure, MPa | 35,3 |
Давление ГПК
| GPC pressure, MPa | 34,3 |
Гидравлический бак
| Hydraulic tank capacity, l | 316 |
