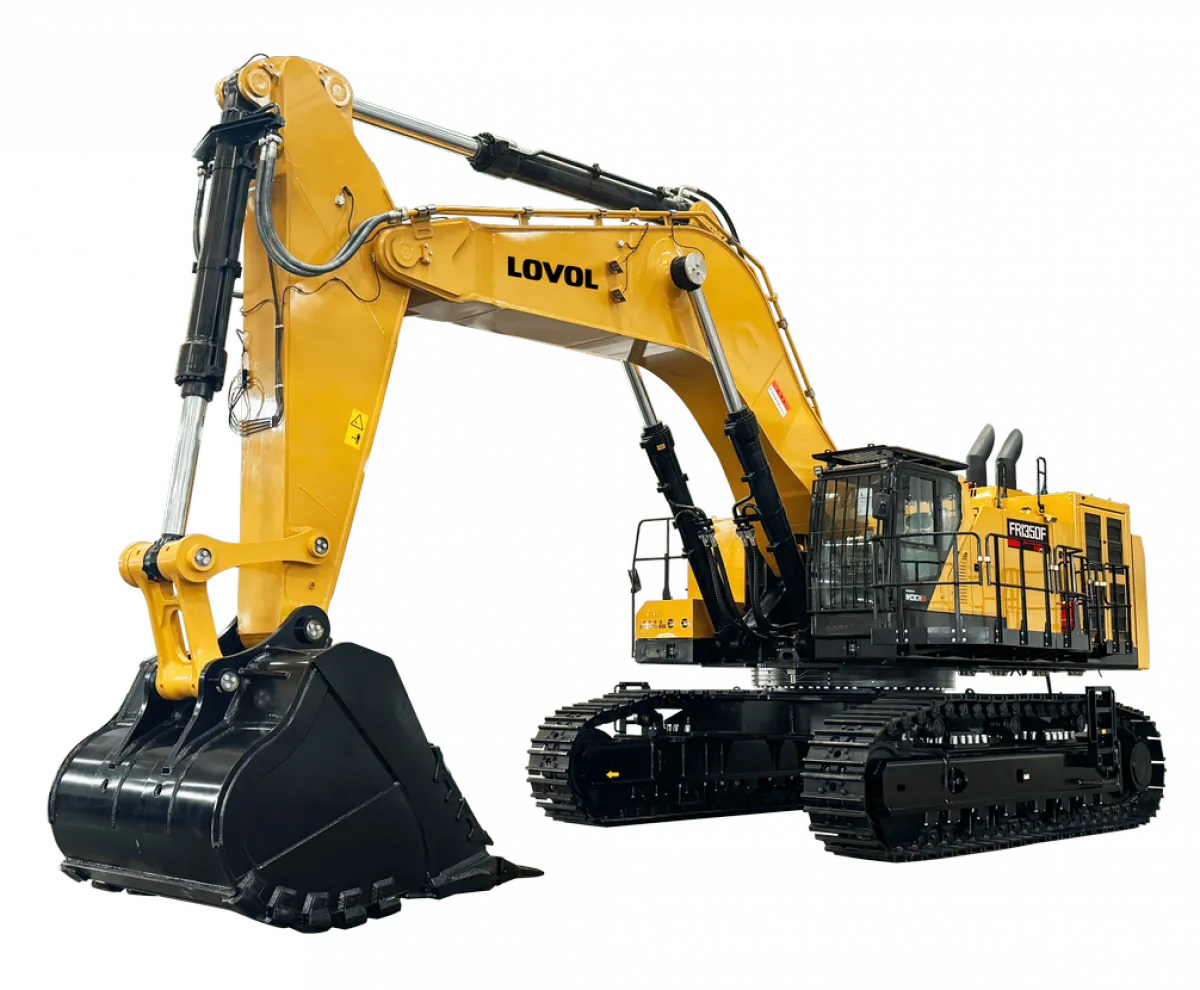

Crawler excavator FR1350F

Основные параметры

Operating weight, kg	80 100
Travel speed, high/low, km/h	4,0 / 2,9
Platform rotation speed, rpm	6,6
Boom length, mm	7 000
Handle length, mm	2 800
Bucket digging force, kN	406
Handle digging force, kN	368
Max. traction force, kN	524
Overcome slope, %	35°
Specific ground pressure, kPa	140
Bucket volume, m³	8.5 (rock bucket)

Двигатель

Двигатель

Engine Manufacturer	WEICHAI
Engine model	WP17T
Number of cylinders	6
Air supply system	Pressure increase (turbocharging)
Working volume, l	16,6
Max. torque, Nm at rpm	3 300 / (1 200–1 600)
Engine power, kW	566 at 1 900

Моторное масло

Engine oil capacity, l

56

Топливный бак

Fuel tank capacity, l

950

Платформа

Platform type

I-beam type, main beam

Шасси

Chassis type

Steel profile H / track change

Гусеница

Track width, mm

650; 2×50 links

Опорный каток

Number of road wheels (one side)

9

Гидросистема

Гидронасос

Hydraulic pump manufacturer	Linde
Hydraulic pump model	HPR300D-02
Max. hydraulic pump flow, l/min	2×504
Hydraulic pump type	Variable piston pump

Распределитель

Distributor manufacturer	Linde
Distributor model	OCV36E, 1 piece, electrical control
Max. distributor flow, l/min	2×504

Поворотный мотор

Slewing Motor Manufacturer	Linde
Rotary motor model	GS23H, 2 pcs.
Rotary motor circuit pressure, MPa	31,5

Бортовой редуктор

Final drive manufacturer	KYB
Final drive model	MSF-340VP-FH8, 2 pcs.
Final drive circuit pressure, MPa	36,8

Давление ГПК

GPC pressure, MPa

34,3 / 37,3

Гидравлический бак

Hydraulic tank capacity, l

640
