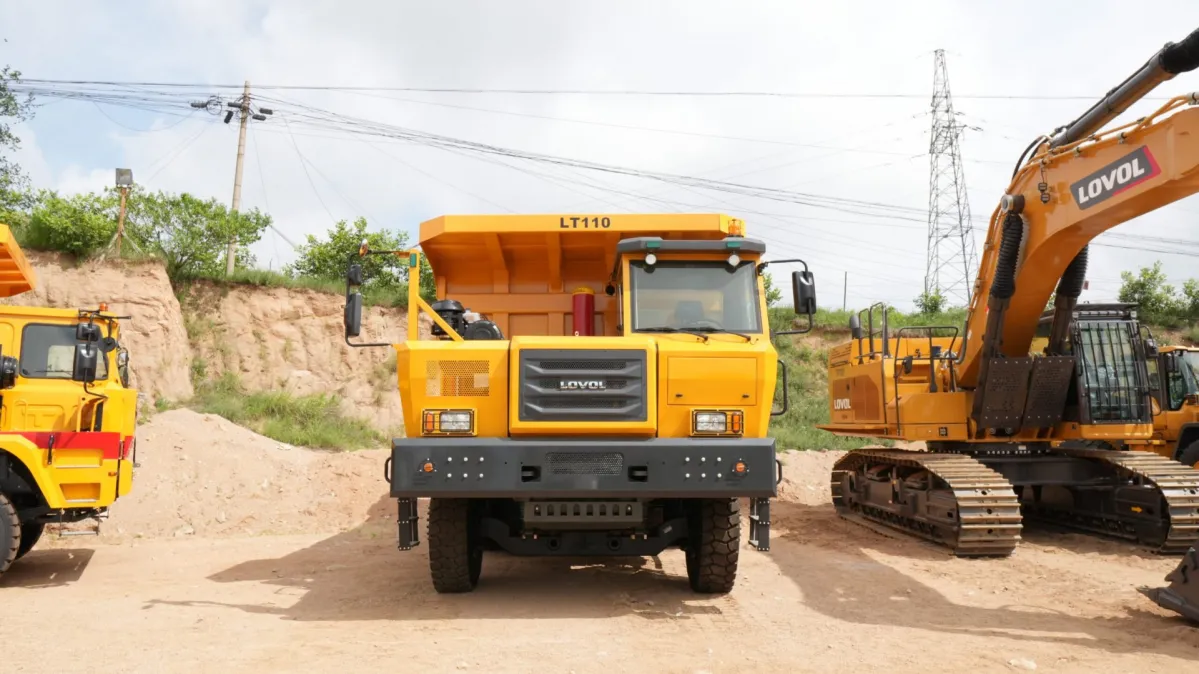

Mining dump truck LT110

Основные параметры

Operating weight, kg	105 000
Vehicle weight (curb), kg	36 400
Rated load capacity	75
Overall dimensions (L×W×H), mm	9 350×3 810×4 180
Wheelbase, mm	3 885+1 780
Track width, mm	2 638 (front 2 734)
Travel speed, high/low, km/h	38 (max)
Overcome slope, %	30
Minimum turning diameter, m	23,5
Minimum ground clearance, mm	390
Bridge load (full), t	25 / 40 / 40
Clutch	430 one-piece liquid-gas traction type booster
Gearbox - gear ratios	8,15 / 6,01 / 4,11 / 3,05 / 2,12 / 1,45 / 1 / 0,83 / R 7,57
Gearbox - max. input torque, Nm	2 400
Air filter	Multi-stage dust-sand
Radiator	Lamellar-ribbed
Tilting mechanism - nominal pressure, MPa	20
Seat	Height adjustment/forward-backward, backrest angle
Frame	High strength flexible steel 1 200×450×130 (12+12+8)
Disk model	11.25-25
Electrical equipment	Single-wire 24 В, minus to ground
Launch	Key

Двигатель

Двигатель

Engine Manufacturer	Weichai
Engine model	WP13G530E310
Engine power, kW	390 at 2 100
Max. torque, Nm at rpm	2 300 / (1 200–1 600)

Топливный бак

Fuel tank capacity, l

700

Платформа

Tipping mechanism	Front lift - 196
Maximum tipping angle, °	46
Body volume, m³	38

Шасси

Колёсная ходовая

Drive axle - type	Central, side planetary two-stage gearbox with center differential lock
Drive axle - total gear ratio	18,722
Drive axle - rated load, kg	40 000
Drive axle - brake type	Drum cam
Front axle - rated load, kg	25 000
Front Axle - Brake Type	Drum cam
Front suspension	Vertical leaf spring; front - hinges, back - sliding fastening; 20/100/15
Rear suspension	Balancer on leaf spring; 32/100/15
Tire markings	16.00R25 ★★★

Коробка передач

Gearbox model

8DS240A

Тормозная система

Travel brake	Double-circuit pneumatic drum
Parking brake	Spring-energy accumulating air brake with emergency braking
Assisted braking	Engine exhaust brake + WEVB
Brake system pressure, bar	10
Hill hold	30% (ascent) / 20% (descent)

Рулевое управление

Steering - type	Fully hydraulic cross
Steering - pressure, MPa	17
Steering - flow rate, l/min	40

Кабина оператора

Cabin

Left-hand, semi-mounted, tilt forward 46°
