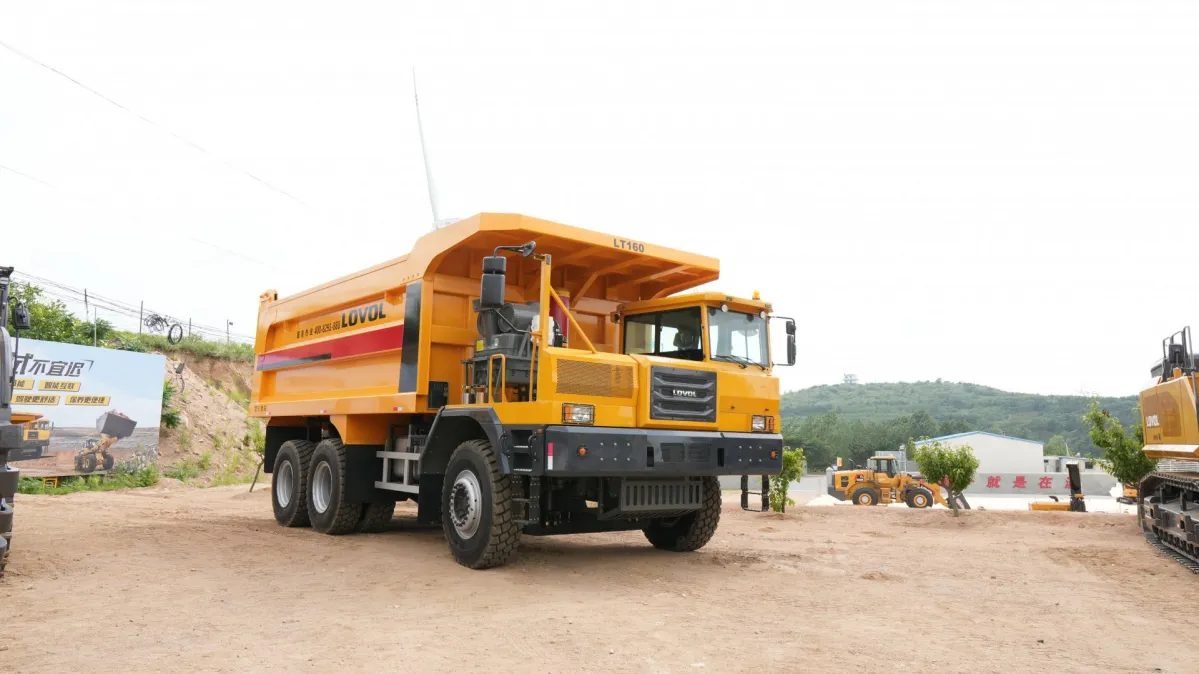

Mining dump truck LT160
Mining trucks
Mining dump truck LT160
Operating weight, kg
160 000
Vehicle weight (curb), kg
55 400
Rated load capacity
110
Overall dimensions (L×W×H), mm
10 750×4 360×4 490
Основные параметры
| Operating weight, kg | 160 000 |
| Vehicle weight (curb), kg | 55 400 |
| Rated load capacity | 110 |
| Overall dimensions (L×W×H), mm | 10 750×4 360×4 490 |
| Wheelbase, mm | 4 600+1 900 |
| Track width, mm | 3 380 / 3 080 / 3 080 |
| Travel speed, high/low, km/h | 38 (max) |
| Overcome slope, % | 29 |
| Minimum turning diameter, m | 30 |
| Minimum ground clearance, mm | 410 |
| Bridge load (full), t | 35 / 60 / 60 |
| Gearbox - gear ratios | 8,46 / 6,41 / 4,64 / 3,33 / 2,37 / 1,55 / 1 / 0,71 / R 8,02 |
| Gearbox - max. input torque, Nm | 3 300 |
| Air filter | Oil air filter |
| Radiator | Lamellar-ribbed |
| Tilting mechanism - nominal pressure, MPa | 20 |
| Seat | Height adjustment/forward-backward, backrest angle |
| Frame | High strength flexible steel 1 460×450×130 (three-layer beam) |
| Disk model | 13.00-29 |
| Electrical equipment | Single-wire 24 В, minus to ground |
| Launch | Key |
Двигатель
Двигатель
| Engine Manufacturer | Weichai |
| Engine model | WP17G770E304 |
| Engine power, kW | 566 at 1 900 |
| Max. torque, Nm at rpm | 3 000 / (1 200–1 600) |
Топливный бак
| Fuel tank capacity, l | 900 |
Платформа
| Tipping mechanism | Front lift - 240 |
| Maximum tipping angle, ° | 46 |
| Body volume, m³ | 55 |
Шасси
Колёсная ходовая
| Drive axle - type | Central, side planetary two-stage gearbox with center differential lock |
| Drive axle - total gear ratio | 21,398 |
| Drive axle - rated load, kg | 60 000 |
| Drive axle - brake type | Drum cam |
| Front axle - rated load, kg | 35 000 |
| Front Axle - Brake Type | Drum cam |
| Front suspension | Double-plate (front and rear) + traction bar + shock absorber; 22/100/15 |
| Rear suspension | Balancer on leaf spring; 36/120/15 |
| Tire markings | 505/95R29 ★★★ |
Коробка передач
| Gearbox model | 8DSS330+FHB400 |
Тормозная система
| Travel brake | Double-circuit pneumatic drum |
| Parking brake | Spring-energy accumulating air brake with emergency braking |
| Assisted braking | Engine exhaust brake + WEVB |
| Brake system pressure, bar | 11 |
| Hill hold | 30% (ascent) / 20% (descent) |
Рулевое управление
| Steering - type | Fully hydraulic cross |
| Steering - pressure, MPa | 17 |
| Steering - flow rate, l/min | 40 |
Кабина оператора
| Cabin | Single-sided left, semi-floating narrow |
