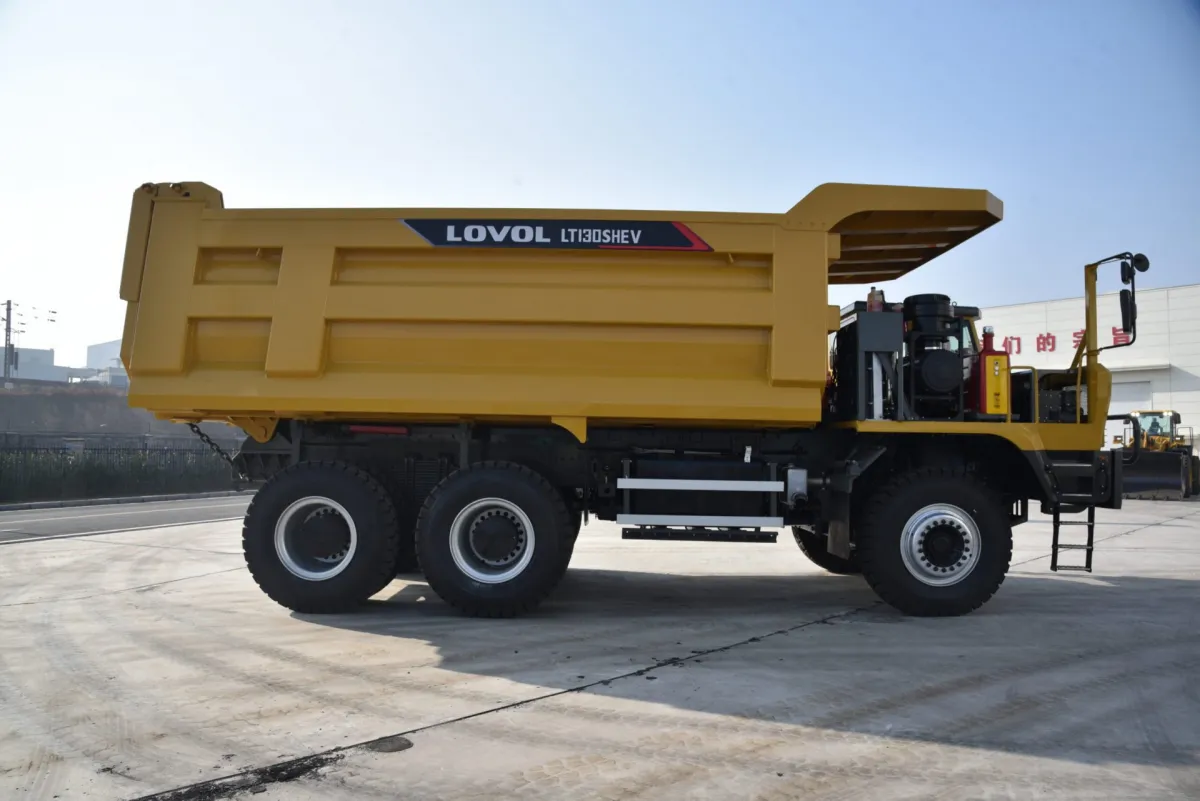

Mining dump truck LT130
Mining trucks
Mining dump truck LT130
Model
LT130
Machine type
Mining truck
Gross vehicle weight
130 000 кг (130 т)
Operating weight, kg
50 000 кг (50 т)
Основные параметры
| Model | LT130 |
| Machine type | Mining truck |
| Gross vehicle weight | 130 000 кг (130 т) |
| Operating weight, kg | 50 000 кг (50 т) |
| Rated load capacity | 90 |
| Overall dimensions (L×W×H), mm | 10 900 × 4 000 × 4 470 |
| Wheelbase, mm | 4 600 + 1 840 |
| Track, mm | 3 032 / 2 850 / 2 850 |
| Maximum speed, km/h | 45 |
| Maximum climbability | 30 % |
| Minimum turning diameter, m | 28 м |
| Minimum ground clearance, mm | 420 |
| Technical route/frame type | Flexible frame |
| Width of main and auxiliary frame, mm | 1 300 |
| Generator power, kW | 300; nominal speed 2 500 rpm |
| Lithium-manganese battery, kWh | 124 |
| Main power steering unit | Eaton |
| Steering system | Fully hydraulic; pressure 17 MPa; flow rate 75 l/min at 1 500 rpm |
| Spring parameters (front), mm | 180 / 150–220 |
| Tilting lift | Front lift - 196 |
| Hydraulic cylinder nominal pressure | 20 MPa |
| Drive axle | Central side planetary two-stage with interaxle blocking; overall gear ratio 18.722; rated load 50 t; drum brake cam |
| Front axle | Rated load 30 t; drum brake cam |
| Air filter | Multi-stage sand-dust |
| Radiator | Lamellar-ribbed; separate upper and lower contours |
| Frame | High strength steel; flexible frame 1 300 × 450 × 130 (12+12 mm) |
| Body | Volume 50 m³ (without tail flap) |
| Launch method | Ignition key |
Двигатель
Двигатель
| Engine model | WEICHAI WP17TG770E304 |
| Engine power, kW | 566 / 1 900 |
| Torque/RPM range | 3 300 Nm / 1 200–1 600 rpm |
| Electric motor power, kW | 520 |
| On-board voltage | 24 V; single-wire circuit; minus on the body |
Топливный бак
| Fuel tank capacity, l | 900 (single-section tank) |
Платформа
| Body volume, m³ | 50 (standard platform; loading without slide) |
| Maximum tipping angle, ° | 46° |
Шасси
Трансмиссия
| Transmission | WEICHAI New Energy 4TR180 |
| Gearbox ratios | 15,491 / 10,812 / 7,594 / 4,073 |
| Maximum input torque of the gearbox, Nm | 1 840 |
Колёсная ходовая
| Bridge load (total) | 30 / 50 / 50 т |
| Front suspension | Five-link hydropneumatic |
| Rear suspension | Balancer on leaf spring |
| Spring parameters (rear), mm | 34 / 100 / 15 |
| Tire markings | 16.00R29 ★★★ |
| Rim (disc) model | 11.5-29 |
Тормозная система
| Travel brake | Double-circuit drum pneumatic |
| Parking brake | Spring energy accumulator pneumatic with emergency braking function |
| Assisted braking | Electric motor gearbox |
| Brake system pressure, bar | 10 bar |
| Hill hold | 20% (while moving) / 15% (parked) |
Кабина оператора
| Cabin | Single-sided right layout; semi-floating narrow |
| Operator seat | With shock absorber; height/reach/back angle adjustment |
