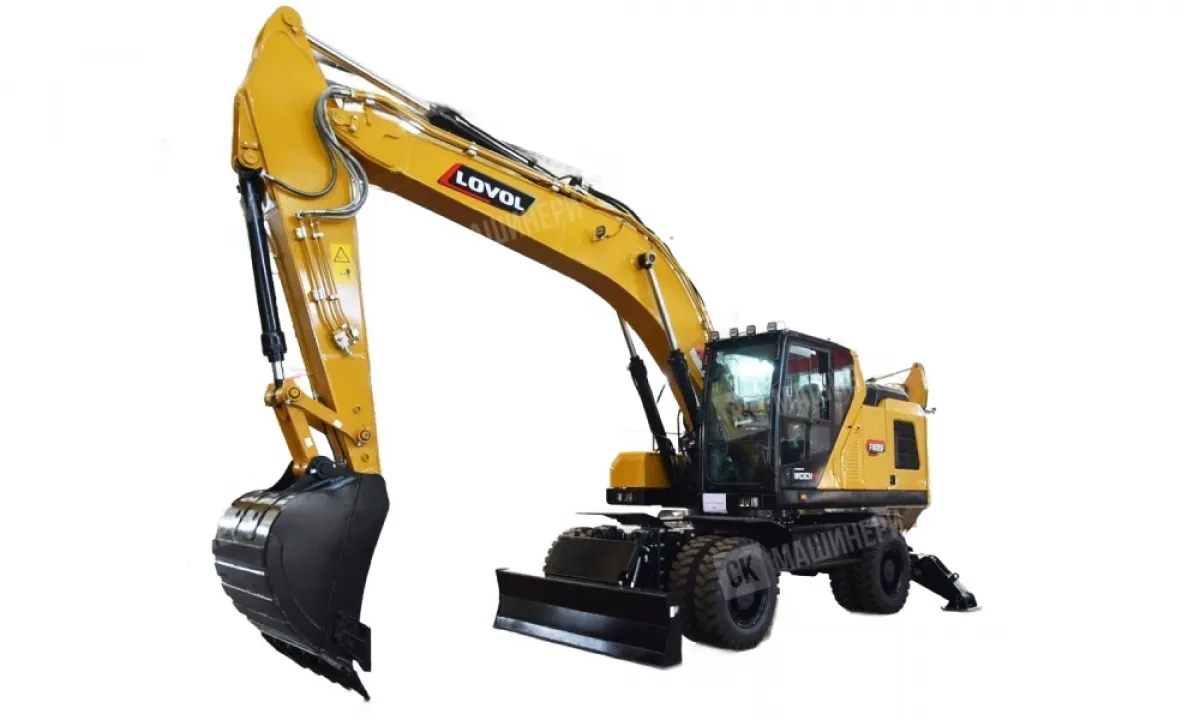

Wheeled excavator FW215F

Основные параметры

Operating weight, kg	23 000
Overall dimensions (L×W×H), mm	9 698×2 540×3 350
Bucket volume, m³	1,1
Travel speed, high/low, km/h	35,2/8,6
Bucket digging force, kN	148
Maximum digging depth, mm	6 511
Max. digging radius, mm	9 891
Handle digging force, kN	101
Max. traction force, kN	120
Platform rotation speed, rpm	10
Boom length, mm	5 700
Handle length, mm	2 925
Max. unloading height, mm	7 175
Max. cutting height, mm	10 082
Overcome slope, %	35°
Wheelbase, mm	2 850
Track width, mm	1 914
Minimum ground clearance, mm	355
Superstructure turning radius, mm	2 540

Двигатель

Двигатель

Engine power, kW	124 at 2 000
Engine Manufacturer	WEICHAI
Engine model	WP7H
Environmental standard	Tier III
Air supply system	Turbocharging with intercooler
Working volume, l	6,8
Max. torque, Nm at rpm	810
Number of cylinders	6

Топливный бак

Fuel tank capacity, l

305

Платформа

Counterweight weight, kg

4 000

Шасси

Chassis type

Wheel X-shaped

Гидросистема

Гидронасос

Max. hydraulic pump flow, l/min	482 (2×241)
Hydraulic pump manufacturer	Kawasaki
Hydraulic pump model	K7V125

Распределитель

Distributor manufacturer	Linde
Distributor model	OCV25

Поворотный мотор

Slewing Motor Manufacturer	Linde
Rotary motor model	GS12H

Бортовой редуктор

Final drive manufacturer	Linde
Final drive model	HMR165

Давление ГПК

GPC pressure, MPa

34,3

Гидравлический бак

Hydraulic tank capacity, l

210
