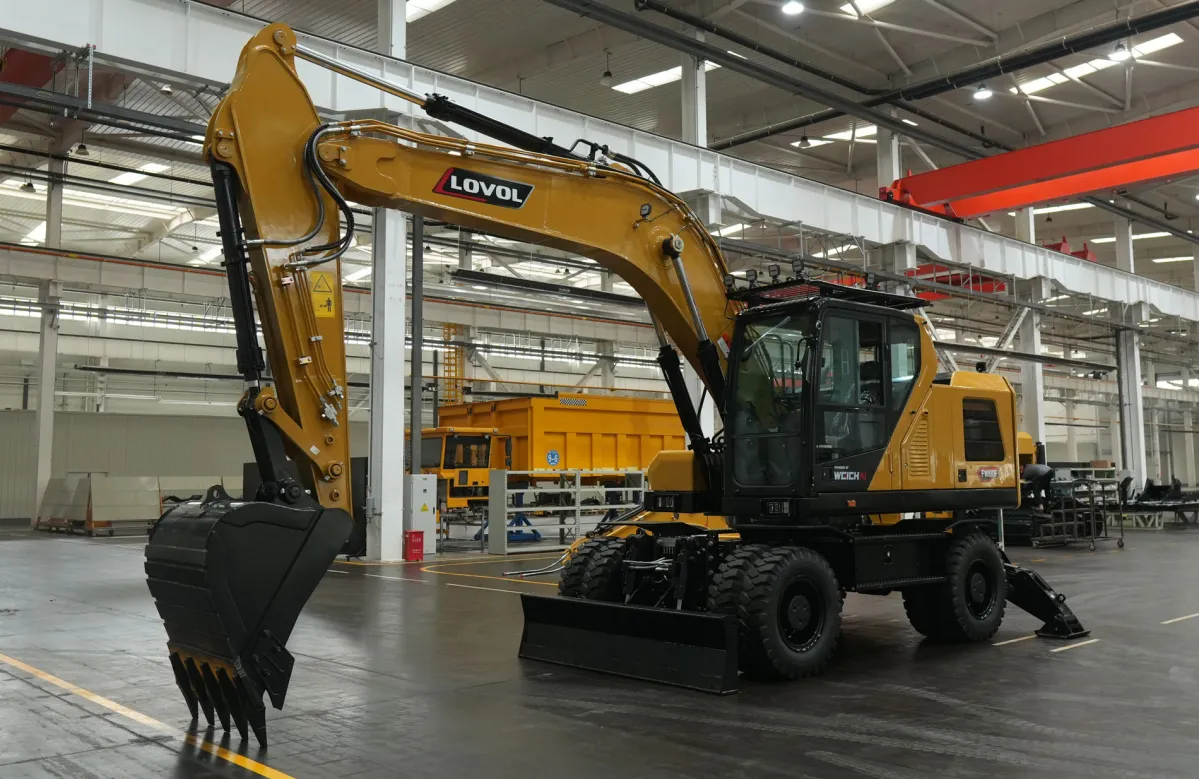

Wheeled excavator FW180F
Wheeled
Wheeled excavator FW180F
Operating weight, kg
19 000
Travel speed, high/low, km/h
35/10
Platform rotation speed, rpm
10
Boom length, mm
2 600
Основные параметры
| Operating weight, kg | 19 000 |
| Travel speed, high/low, km/h | 35/10 |
| Platform rotation speed, rpm | 10 |
| Boom length, mm | 2 600 |
| Handle length, mm | 5 200 |
| Bucket digging force, kN | 130,4 |
| Handle digging force, kN | 93,4 |
| Bucket volume, m³ | 0,85 |
| Total length, mm | 8 751 |
| Wheelbase, mm | 2 700 |
| Blade width, mm | 2 520 |
| Track width, mm | 1 944 |
| Superstructure turning radius, mm | 2 490 |
| Overall width, mm | 2 520 |
| Max. cutting height, mm | 9 057 |
| Maximum digging depth, mm | 5 946 (6 310 with BRS) |
| Max. excavation distance, mm | 8 871 |
| Overall height, mm | 3 200 |
Двигатель
Двигатель
| Engine Manufacturer | WEICHAI |
| Engine model | WP4.6N |
| Engine power, kW | 123 at 2 200 |
| Working volume, l | 4,6 |
| Number of cylinders | 4 |
| Max. torque, Nm at rpm | 680 |
| Environmental standard | Tier III |
Моторное масло
| Engine cooling system, l | 8 |
Топливный бак
| Fuel tank capacity, l | 273 |
Платформа
| Counterweight weight, kg | 2 819 |
Шасси
| Chassis type | Wheel X-shaped |
Колёсная ходовая
| Tire markings | 10.00-20 |
Коробка передач
| Gearbox Manufacturer | ZF |
| Gearbox model | 2HL270 |
Гидросистема
Гидронасос
| Hydraulic pump type | Axial piston |
| Hydraulic pump manufacturer | KAWASAKI |
| Hydraulic pump model | K3V112 |
| Max. hydraulic pump flow, l/min | 448 |
Распределитель
| Distributor manufacturer | Linde |
| Distributor model | OCV25 |
Поворотный мотор
| Turning circuit pressure, mPa | 25 |
| Slewing Motor Manufacturer | LINDE |
| Rotary motor model | GS12H |
Бортовой редуктор
| Stroke circuit pressure, mPa | 34,3 |
| Final drive manufacturer | LINDE |
| Final drive model | HMR135 |
Давление ГПК
| GPC pressure, MPa | 34,3 |
Гидравлический бак
| Hydraulic tank capacity, l | 165 |
