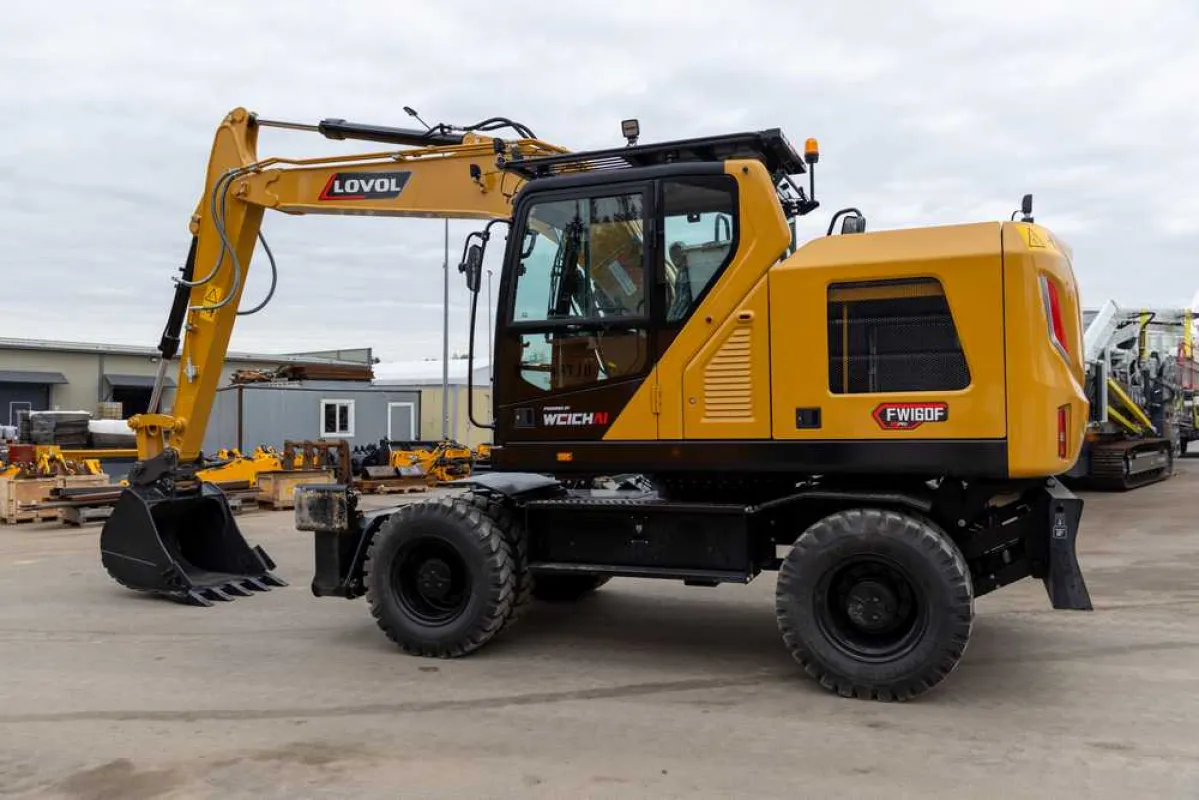

Wheeled excavator FW160F
Wheeled
Wheeled excavator FW160F
Operating weight, kg
14 900
Travel speed, high/low, km/h
36/9
Boom length, mm
4 600
Handle length, mm
3 000
Основные параметры
| Operating weight, kg | 14 900 |
| Travel speed, high/low, km/h | 36/9 |
| Boom length, mm | 4 600 |
| Handle length, mm | 3 000 |
| Bucket digging force, kN | 102 |
| Handle digging force, kN | 75 |
| Bucket volume, m³ | 0,6 |
| Total length, mm | 7 749 |
| Wheelbase, mm | 2 800 |
| Track width, mm | 1 944 |
| Max. cutting height, mm | 8 855 |
| Maximum digging depth, mm | 5 101 (5 336 with BRS) |
| Max. excavation distance, mm | 8 280 |
| Overall width, mm | 2 490 |
| Overall height, mm | 3 162 |
Двигатель
Двигатель
| Engine Manufacturer | Weichai |
| Engine model | WP4.6N |
| Engine power, kW | 123 at 2 200 |
| Number of cylinders | 4 |
| Air supply system | Turbocharging |
| Working volume, l | 4,58 |
| Max. torque, Nm at rpm | 680 |
| Environmental standard | Tier III |
Шасси
| Chassis type | Wheel X-shaped |
Гидросистема
Гидронасос
| Hydraulic pump manufacturer | Hengli |
| Hydraulic pump model | V90N75DT |
| Max. hydraulic pump flow, l/min | 165×2 |
| Hydraulic pump type | Axial piston |
Распределитель
| Distributor manufacturer | Linde |
| Distributor model | OCV25 |
Поворотный мотор
| Slewing Motor Manufacturer | Linde + Zhuchi |
| Rotary motor model | GS06H |
Бортовой редуктор
| Final drive manufacturer | Linde |
| Final drive model | HMR105 |
Давление ГПК
| GPC pressure, MPa | 35 |
