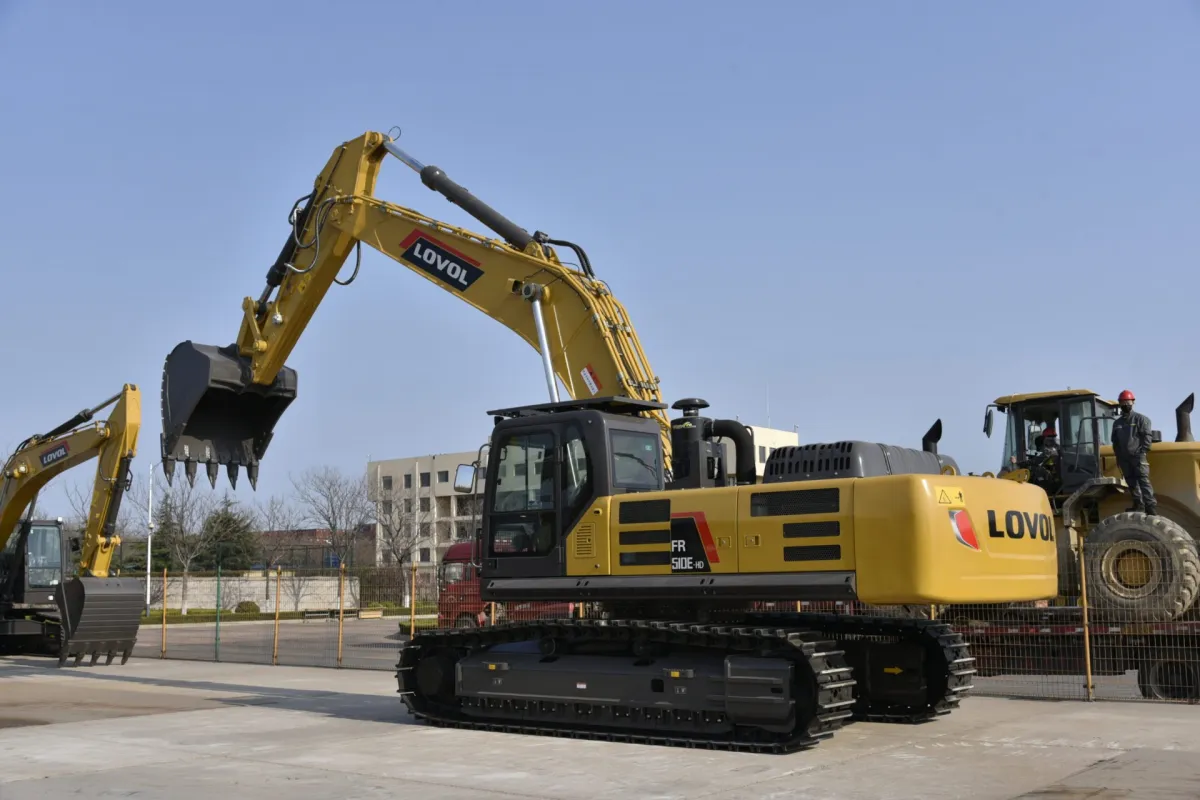

Crawler excavator FR510E2
Tracked
Crawler excavator FR510E2
Operating weight, kg
50 000
Bucket volume, m³
2.5 (rock bucket)
Total length, mm
11 950
Overall width, mm
3 340
Основные параметры
| Operating weight, kg | 50 000 |
| Bucket volume, m³ | 2.5 (rock bucket) |
| Total length, mm | 11 950 |
| Overall width, mm | 3 340 |
| Overall height, mm | 4 100 |
| Upper platform width, mm | 3 340 |
| Distance from the center of rotation to the rear edge, mm | 3 940 |
| Minimum ground clearance, mm | 562,5 |
| Ground clearance under counterweight, mm | 1 356,5 |
| Mini. turning radius of the working device, mm | 4 962 |
| Track width, mm | 2 740 |
| Support length, mm | 4 430 |
| Support length of track on the ground, mm | 5 498 |
| Boom length, mm | 6 500 |
| Handle length, mm | 2 550 |
| Max. excavation distance, mm | 11 520 |
| Max. digging radius, mm | 10 896 |
| Maximum digging depth, mm | 6 580 |
| Max. digging depth (vertical wall height), mm | 6 220 |
| Max. cutting height, mm | 10 715 |
| Max. unloading height, mm | 7 156 |
| Travel speed, high/low, km/h | 5,3 / 3,2 |
| Platform rotation speed, rpm | 7,8 |
| Bucket digging force, kN | 310 |
| Handle digging force, kN | 260 |
| Max. traction force, kN | 382 |
| Overcome slope, % | 35° |
| Specific ground pressure, kPa | 83 |
| Overall dimensions (L×W×H), mm | 3 025×1 115×940 (counterweight) |
Двигатель
Двигатель
| Engine Manufacturer | Cummins |
| Engine model | QSM11 |
| Number of cylinders | 6 |
| Air supply system | Turbocharged, intercooled |
| Working volume, l | 11 |
| Max. torque, Nm at rpm | 1 898 / 1 400 |
| Engine power, kW | 298 at 2 000 |
Моторное масло
| Engine oil capacity, l | 38 |
Топливный бак
| Fuel tank capacity, l | 710 |
Платформа
| Platform type | Lateral, with tail |
| Counterweight weight, kg | 11 100 |
Шасси
| Chassis type | Fixed orbit, X-type frame |
Гусеница
| Track width, mm | 600 (double grouser shoe); 50 shoes |
Опорный каток
| Number of road wheels (one side) | 9 |
Гидросистема
Гидронасос
| Hydraulic pump type | Positive flow |
| Hydraulic pump manufacturer | Kawasaki |
| Hydraulic pump model | K5V212DPH |
| Max. hydraulic pump flow, l/min | 760 |
Распределитель
| Distributor manufacturer | Kawasaki |
| Distributor model | KMX32NA |
Поворотный мотор
| Slewing Motor Manufacturer | Kawasaki |
| Rotary motor model | M5X250CHB |
| Rotary motor circuit pressure, MPa | 26,8 |
Бортовой редуктор
| Final drive manufacturer | NABOTESCO |
| Final drive model | GM85 |
| Final drive circuit pressure, MPa | 34,3 |
Гидравлический бак
| Hydraulic tank capacity, l | 380 (tank); 600 (hydraulic) |
