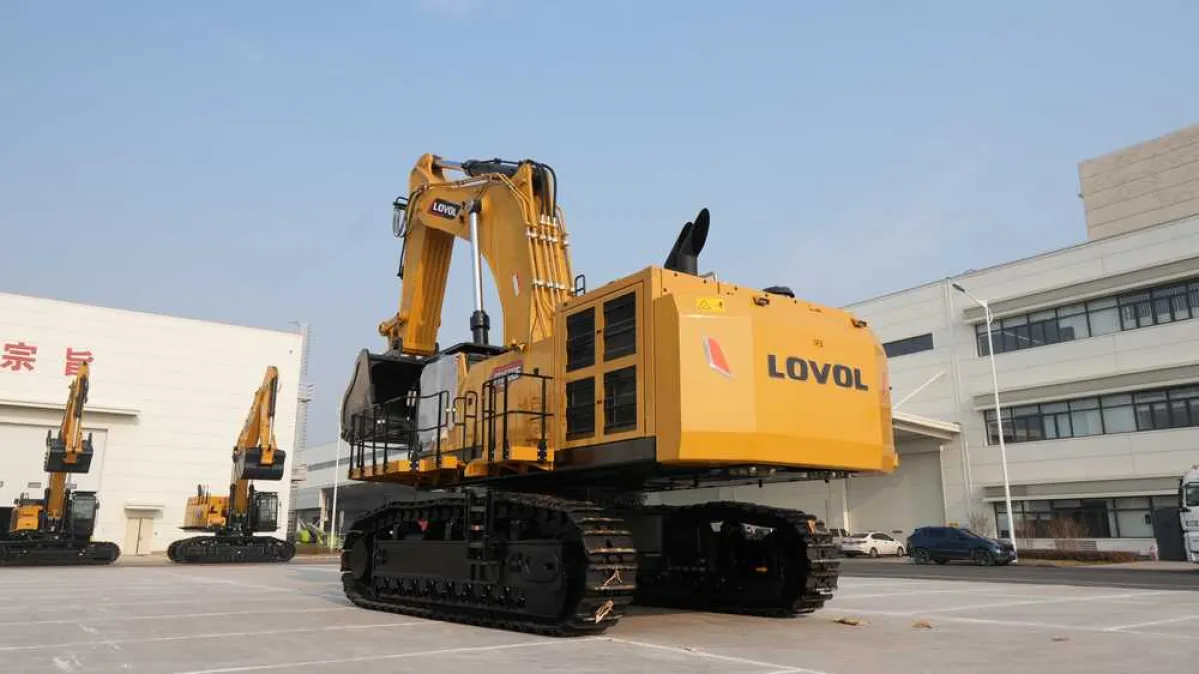

Crawler excavator FR1500F
Tracked
Crawler excavator FR1500F
Operating weight, kg
145 000
Engine power, kW
680 (at 1 800 rpm)
Bucket volume, m³
8 (rock bucket)
Maximum digging depth, mm
7 838
Основные параметры
| Operating weight, kg | 145 000 |
| Bucket volume, m³ | 8 (rock bucket) |
| Maximum digging depth, mm | 7 838 |
| Bucket cutting force, kN | 667 |
| Track width, mm | 4 100 |
| Extension of the rear part of the superstructure, mm | 5 513 |
| Number of road wheels, pcs. | 9 |
| Specific ground pressure, kPa | 153 |
| Handle length, mm | 3 400 |
| Handle cutting force, kN | 610 |
| Boom length, mm | 7 600 |
| Chassis length, mm | 7 210 |
| Maximum cutting height, mm | 13 311 |
| Overall height, mm | 6 215 |
| Control circuit pressure, mPa | 3.9 |
| Overall length, mm | 15 585 |
| Overall width, mm | 5 605 |
| Support length of track on the ground, mm | 5 660 |
Двигатель
Двигатель
| Engine power, kW | 680 (at 1 800 rpm) |
| Number of cylinders | 8 |
Топливный бак
| Fuel tank capacity, l | 1 900 |
Платформа
| Counterweight weight, kg | 18 000 |
Гидросистема
Поворотный мотор
| Turning circuit pressure, mPa | 35 |
Бортовой редуктор
| Stroke circuit pressure, mPa | 34.3 |
Гидравлический бак
| Hydraulic tank capacity, l | 1 588 |
