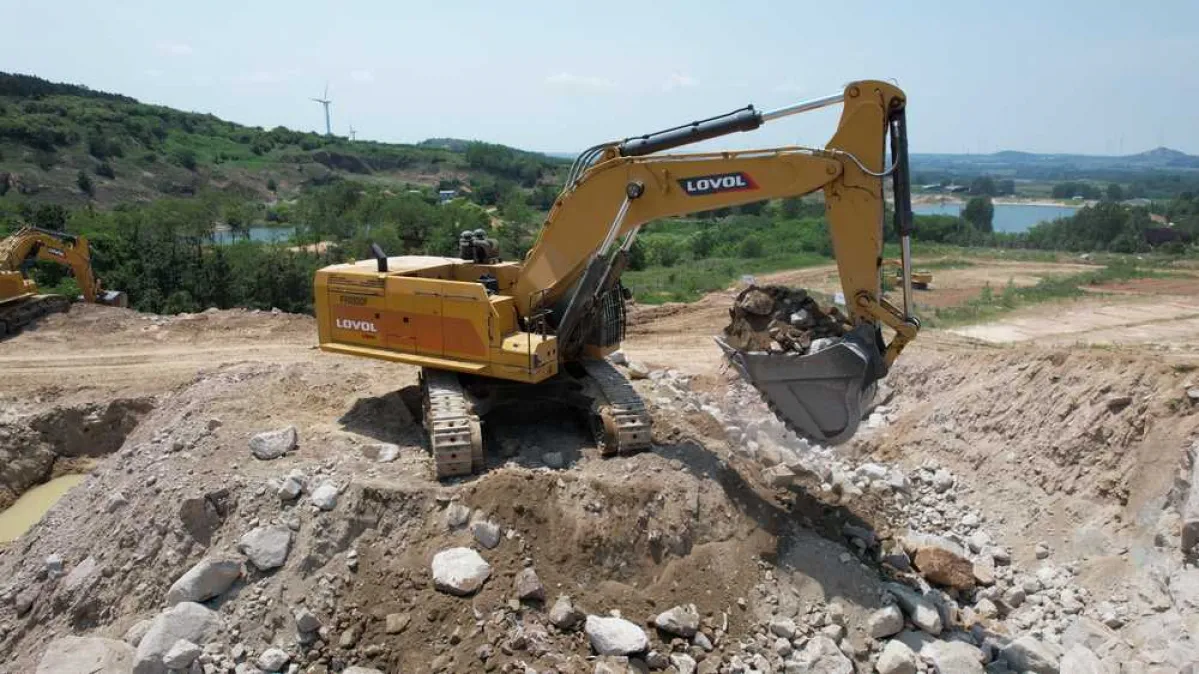

Crawler excavator FR1000F
Tracked
Crawler excavator FR1000F
Operating weight, kg
98 000
Engine power, kW
571 (at 1 800 rpm)
Bucket volume, m³
7 (rock bucket)
Maximum digging depth, mm
7 180
Основные параметры
| Operating weight, kg | 98 000 |
| Bucket volume, m³ | 7 (rock bucket) |
| Maximum digging depth, mm | 7 180 |
| Bucket cutting force, kN | 501 |
| Track width, mm | 2 790 |
| Extension of the rear part of the superstructure, mm | 4 840 |
| Number of road wheels, pcs. | 9 |
| Specific ground pressure, kPa | 145 |
| Handle length, mm | 2 925 |
| Handle cutting force, kN | 451 |
| Boom length, mm | 7 250 |
| Chassis length, mm | 6 355 |
| Maximum cutting height, mm | 12 850 |
| Track width, mm | 3 550 |
| Overall height, mm | 5 300 |
| Control circuit pressure, mPa | 3.9 |
| Overall length, mm | 13 710 |
| Overall width, mm | 3 500 |
| Support length of track on the ground, mm | 5 090 |
Двигатель
Двигатель
| Engine power, kW | 571 (at 1 800 rpm) |
| Working volume, l | 19.8 |
| Number of cylinders | 6 |
Топливный бак
| Fuel tank capacity, l | 1 260 |
Платформа
| Counterweight weight, kg | 16 001 |
Гидросистема
Гидронасос
| Max. hydraulic pump flow, l/min | 1 080 |
Поворотный мотор
| Turning circuit pressure, mPa | 42 |
Бортовой редуктор
| Stroke circuit pressure, mPa | 34.3 |
Гидравлический бак
| Hydraulic tank capacity, l | 840 |
