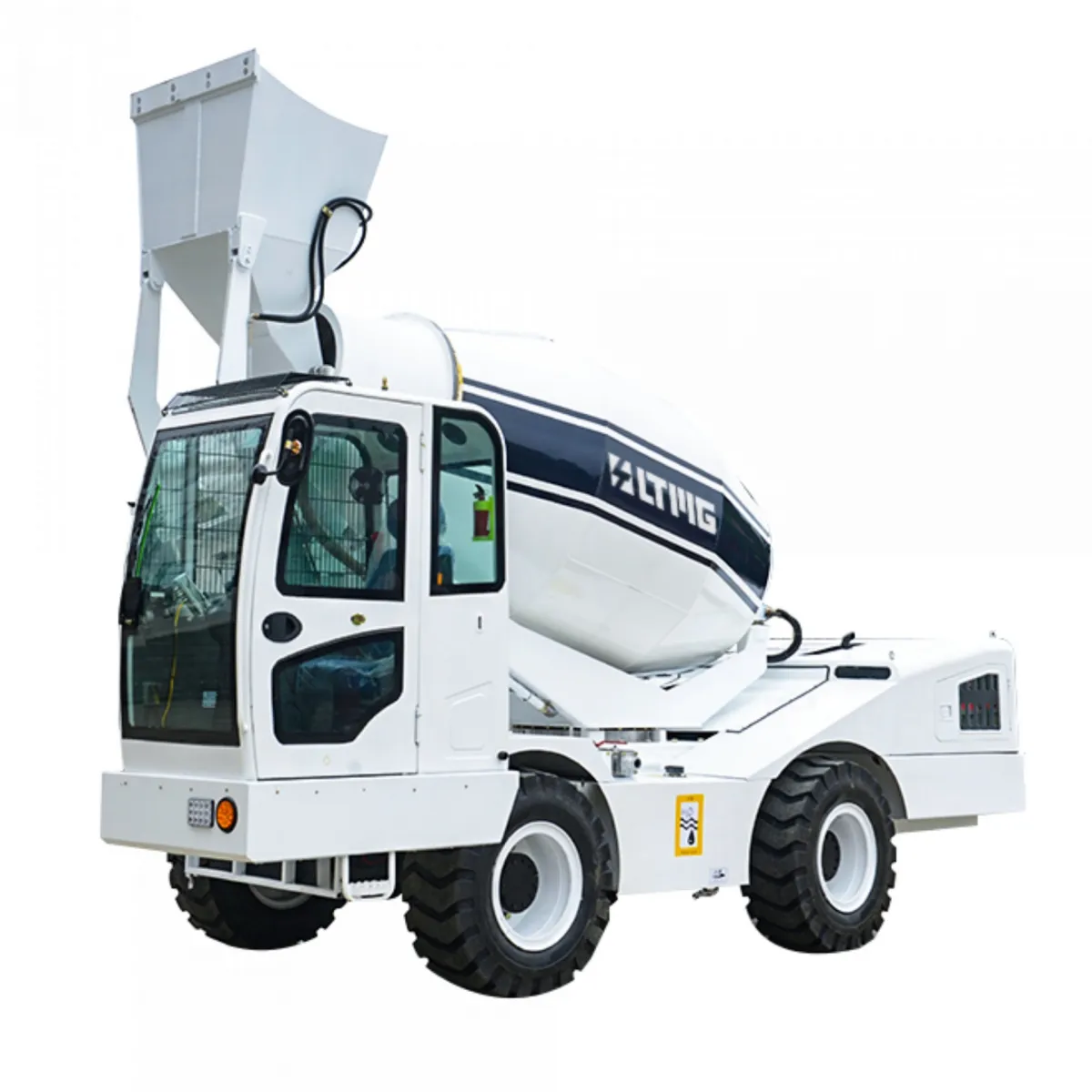

Self-propelled concrete mixer LTMG LTM40
Self-loading concrete mixers
Self-propelled concrete mixer LTMG LTM40
Loading volume 4.0 m³ per batch, up to 5 batches per hour. Engine YC6J125Z-T20, 6 cyl.
Model
LTM40
Type
Integral chassis frame, self-loading, mixing, transporting
Performance
Batch ≤15 min, 4 batches/hour
Steering
Front-wheel drive, all-wheel drive 4×4
Основные параметры
| Model | LTM40 |
| Type | Integral chassis frame, self-loading, mixing, transporting |
| Performance | Batch ≤15 min, 4 batches/hour |
| Steering | Front-wheel drive, all-wheel drive 4×4 |
| Speed | High 36.5 km/h; low 6.5 km/h |
| Number of gears | Three forward, three back |
| Fuel consumption | At idle 2–3 liters; in operating mode 6–8 l |
| Drum (volume) | Geometric volume 5.5 m³; working mixing 3.5–4 m³ |
| Spiral mixing | Double helix with guide screw; feeding to the left, unloading to the right; more homogeneous mixture |
| Rotating the mixing tank | Horizontal rotation 270°, unloading without dead spots around the perimeter of the machine |
| Discharge chute | Two removable chutes for increased discharge length |
| Ladle | 0,55 m³ |
| Bucket dump switch | Hydraulic gate, electric control |
| Water supply and washing | Hydraulic self-priming pumps; flushing with high pressure pump |
| Weighing system | Electronic (interface language optional) |
| Voltage | Batteries 24 V, 100 Ah, 2 pcs. |
| Water tank capacity | 520 л |
| Operating weight, kg | 7 600 кг |
Двигатель
Двигатель
| Engine model | Yunnei, four-cylinder, 2 200 rpm, 92 kW |
Топливный бак
| Fuel tank capacity, l | 180 л |
Шасси
Колёсная ходовая
| Tire markings | 16/70–20, steel cord tire |
Кабина оператора
| Controls | Electric buttons, four-way guide handle |
Self-propelled concrete mixer with self-loading is a mobile unit on a wheeled chassis with a rotating drum and a front loading bucket: sand, crushed stone and cement are loaded into the drum without third-party equipment, mixing and supply of the finished solution is carried out on site.
Advantages of purchasing from us
Official guarantee
Full warranty from the manufacturer with service support in Kazakhstan
Leasing and installments
Flexible financing terms - leasing and installments
Service and spare parts
Own service center and warehouse of original spare parts
Delivery within the Republic of Kazakhstan
Prompt delivery of equipment to any region of Kazakhstan
