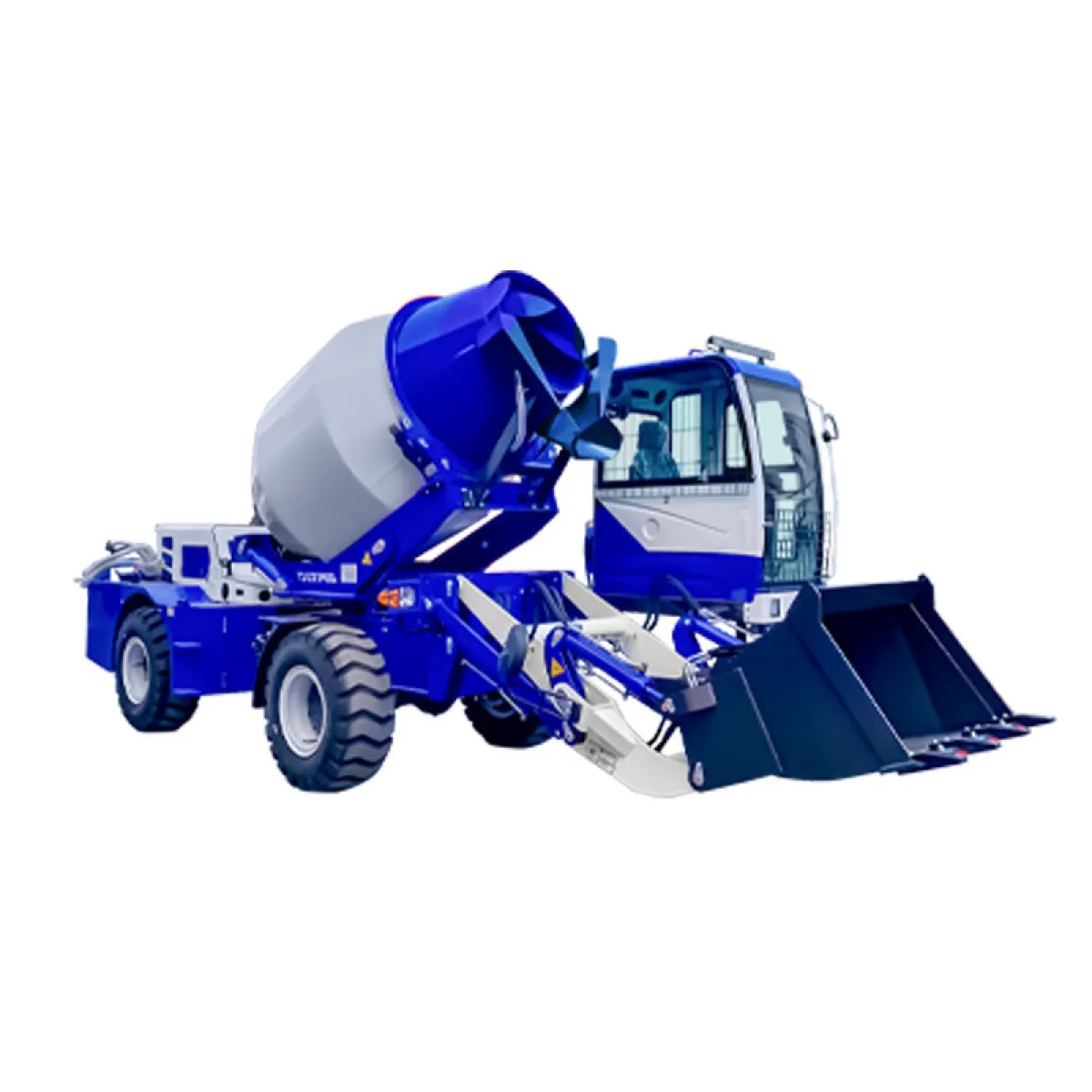

Self-propelled concrete mixer LTMG LTM35
Self-loading concrete mixers
Self-propelled concrete mixer LTMG LTM35
Loading volume 3.5 m³ per batch, up to 4.5 batches per hour. Engine Yuchai YCD4J22T, 4 cyl.
Model
LTM35
Volume per batch
3,5 m³
Drum rotation
The height of the discharge pipe is 1.75 m, the horizontal rotation is 270°, the tank can be raised and lowered
Performance
Up to 4.5 batches per hour, 15.5 m³/h
Основные параметры
| Model | LTM35 |
| Volume per batch | 3,5 m³ |
| Drum rotation | The height of the discharge pipe is 1.75 m, the horizontal rotation is 270°, the tank can be raised and lowered |
| Performance | Up to 4.5 batches per hour, 15.5 m³/h |
| Drive mode | The engine is directly connected to the 280 torque converter, through the driveshaft - a gearbox with two speed ranges, through the driveshafts to the front and rear axles - 4x4 all-wheel drive |
| Overcome slope, % | 40° |
| Speed | Low 0–25 km/h, high 0–40 km/h |
| Hydraulic system | Open oil circuit, axial piston motor, two gear pumps |
| Joysticks | Two hydraulic joysticks with pilot control: bucket, boom, 270° rotation, tank lift |
| Ladle | 0.6 m³, hydraulic gate |
| Discharge chute | Two removable 150 cm long chutes to increase the discharge length |
| Water supply system | Self-priming drive pump, 24V centrifugal pump, 24V car wash |
| Brakes | Small servo pump on two independent circuits; single wheel 4-piston caliper with double brake caliper |
| Steering | Hydraulic articulated |
| Electrical equipment | 24 В |
| Tanks: water / fuel / hydraulics | Water: 700 l + 2 × 150 l; diesel 130 l; hydraulic oil 130 l |
| Operating weight, kg | 8 200 kg |
| Overall dimensions (L×W×H), mm | 7 700 × 2 750 × 3 250 mm / 2 900 mm / 2 150 mm |
| Minimum turning radius | 2 818 mm |
| Other | Manganese steel frame Q345 luxury cabin concrete bucket |
Двигатель
Двигатель
| Engine model | Yuchai YCD4J22T, diesel, water cooling, 4 cylinders, 2 400 rpm, 85 kW |
| Engine power, kW | 85 kW |
Шасси
Колёсная ходовая
| Tire markings | 16/70–20, one axis (one line) |
Кабина оператора
| Cabin | Extended comfortable cabin, front window opens, protection against rollovers and falling objects |
Self-propelled concrete mixer with self-loading is a mobile unit on a wheeled chassis with a rotating drum and a front loading bucket: sand, crushed stone and cement are loaded into the drum without third-party equipment, mixing and supply of the finished solution is carried out on site.
Advantages of purchasing from us
Official guarantee
Full warranty from the manufacturer with service support in Kazakhstan
Leasing and installments
Flexible financing terms - leasing and installments
Service and spare parts
Own service center and warehouse of original spare parts
Delivery within the Republic of Kazakhstan
Prompt delivery of equipment to any region of Kazakhstan
