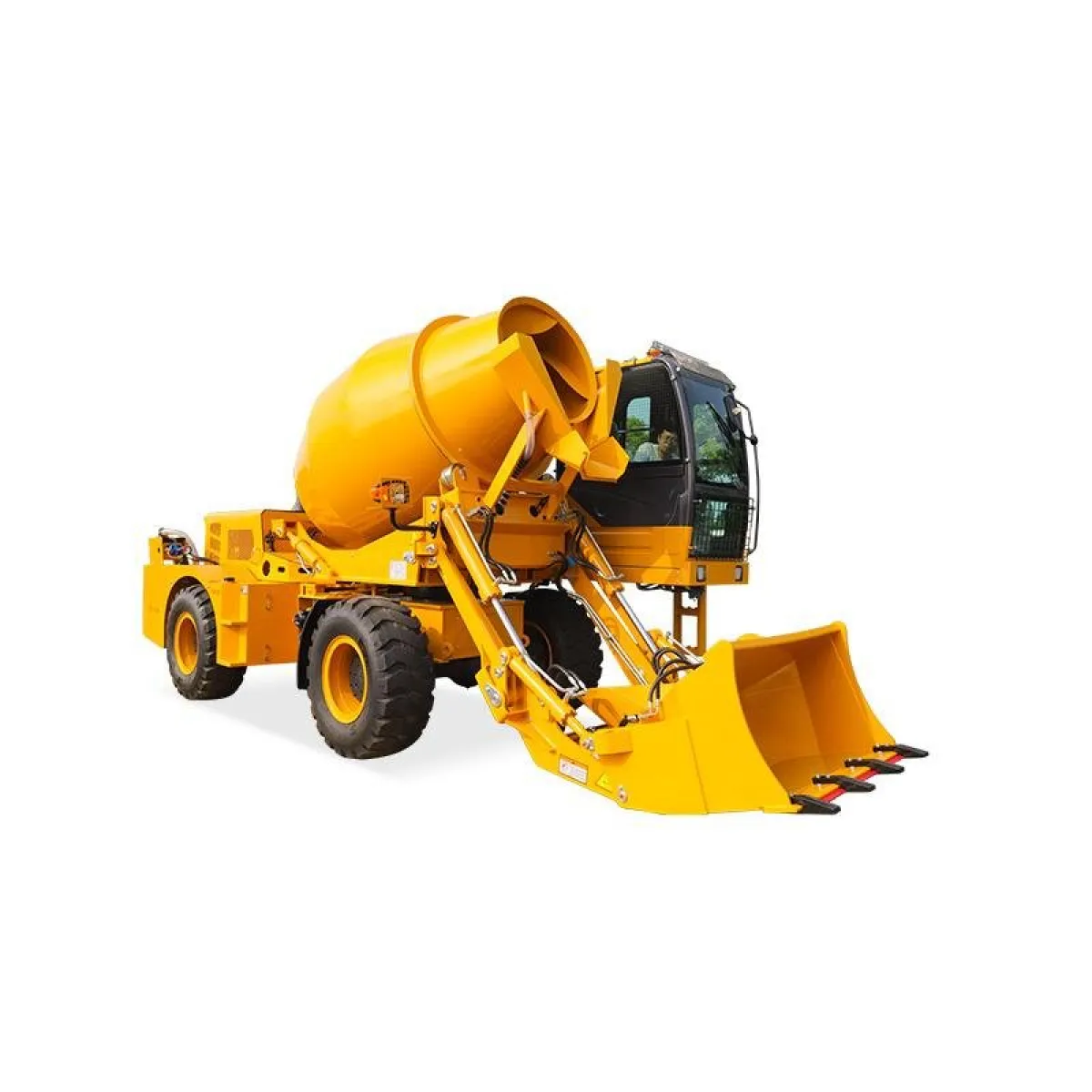

Self-propelled concrete mixer LTMG LTM26
Self-loading concrete mixers
Self-propelled concrete mixer LTMG LTM26
Loading volume 2.6 m³ per batch, up to 4 batches per hour. Engine Yuchai 4102, 4 cyl.
Model
LTM26
Leaving the party
2,6 m³
Drum rotation
Discharge pipe height 1.65 m, horizontal rotation 270°, tank can be raised and lowered
Performance
Up to 4 batches per hour, 10.4 m³/h
Основные параметры
| Model | LTM26 |
| Leaving the party | 2,6 m³ |
| Drum rotation | Discharge pipe height 1.65 m, horizontal rotation 270°, tank can be raised and lowered |
| Performance | Up to 4 batches per hour, 10.4 m³/h |
| Drive diagram | The engine is directly connected to the 280 torque converter, through the driveshaft - a dual-range gearbox, through the driveshafts to the front and rear axles - 4x4 all-wheel drive |
| Overcome slope, % | 40° |
| Speed | Low 0–25 km/h, high 0–40 km/h |
| Hydraulic system | Open circuit with oil, two gear pumps in operation |
| Joysticks | Two hydraulic joysticks with pilot control: bucket, top link, 270° rotation, tank lift |
| Ladle | 0.6 m³, hydraulic gate |
| Discharge chute | Two removable 150 cm long chutes to increase the discharge length |
| Water supply system | Self-priming drive pump, 24V centrifugal pump, 24V high pressure washer |
| Brakes | Small servo pump on two independent circuits; single wheel 4-piston caliper with double brake caliper |
| Steering | Hydraulic articulated |
| Electrical equipment | 24 В |
| Tanks: water / fuel / hydraulics | 1 × 600 l water, 120 l diesel fuel, 120 l hydraulic oil |
| Operating weight, kg | 7 000 кг |
| Overall dimensions (L×W×H), mm | 7 150 × 2 650 × 3 000 мм / 2 900 мм / 2 100 мм |
| Minimum turning radius | 2 800 мм |
| Other | Manganese steel frame Q345 luxury cabin cabin impact protection concrete bucket |
Двигатель
Двигатель
| Engine model | Yuchai 4 102 supercharged, diesel, water cooled, 4 cylinders, 2 200 rpm |
| Engine power, kW | 77,3 кВт |
Шасси
Колёсная ходовая
| Tire markings | 12R22.5, steel cord |
Кабина оператора
| Cabin | Extended comfortable cabin, protection against rollovers and falling objects |
Self-propelled concrete mixer with self-loading is a mobile unit on a wheeled chassis with a rotating drum and a front loading bucket: sand, crushed stone and cement are loaded into the drum without third-party equipment, mixing and supply of the finished solution is carried out on site.
