Self-propelled concrete mixer LTMG LTM25
Self-loading concrete mixers

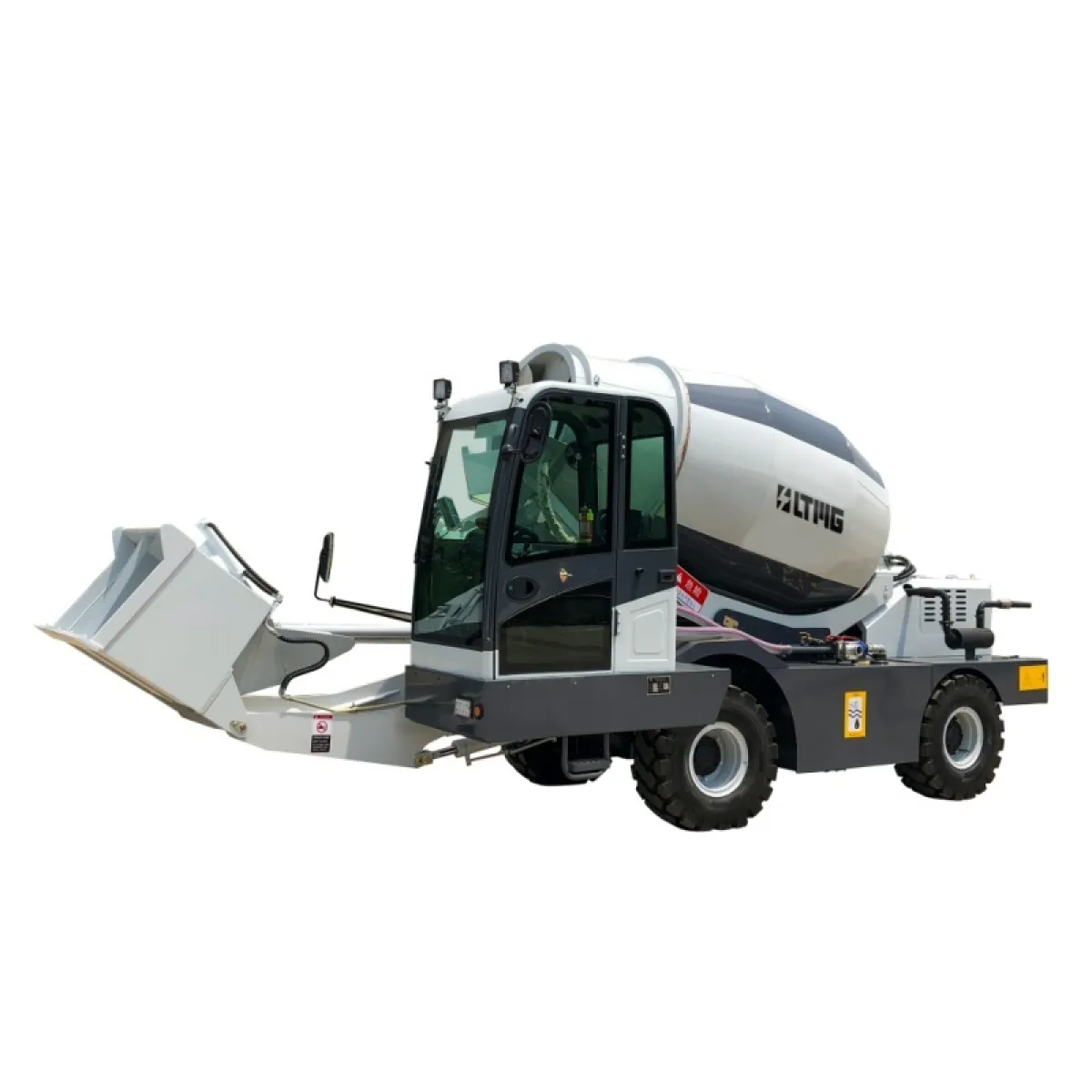

Self-propelled concrete mixer LTMG LTM25
Loading volume 2.6 m³ per batch, up to 4 batches per hour. Engine Yunnei 4 cyl.
Model
LTM25
TYPE
Integral chassis frame, movable, self-unloading, mixing, transporting
PRODUCTIVITY
BATCH≤15MIN, 4BATCHES/HOUR
steering
Front steering 4X4
Основные параметры
| Model | LTM25 |
| TYPE | Integral chassis frame, movable, self-unloading, mixing, transporting |
| PRODUCTIVITY | BATCH≤15MIN, 4BATCHES/HOUR |
| steering | Front steering 4X4 |
| SPEED | HIGH SPEED: 32.5KM/H; LOW SPEED: 5.5KM/H |
| Number of gears | Three forward, three back |
| Fuel consumption | In idle mode 1.8Л-2Л, in operating mode 5Л-7Л. |
| Mixing tank tilt | 16° |
| SHOVEL | 0.35³ |
| Bucket dump switch | Hydraulic gate, electric control |
| High pressure washer | High pressure washer |
| VOLTAGE | Battery 24В-100A 2 pieces |
| Water tank capacity | 370L |
| Operating weight, kg | 6 600KG |
Двигатель
Двигатель
| Engine model | YUNNEI ENGINE: FOUR CYLINDER 2 200RPM, 76KW |
Топливный бак
| Fuel tank capacity, l | 180L |
Шасси
Колёсная ходовая
| Tire markings | 23.5 - 16 (Steel wire tire) |
Self-propelled concrete mixer with self-loading is a mobile unit on a wheeled chassis with a rotating drum and a front loading bucket: sand, crushed stone and cement are loaded into the drum without third-party equipment, mixing and supply of the finished solution is carried out on site.
Advantages of purchasing from us
Official guarantee
Full warranty from the manufacturer with service support in Kazakhstan
Leasing and installments
Flexible financing terms - leasing and installments
Service and spare parts
Own service center and warehouse of original spare parts
Delivery within the Republic of Kazakhstan
Prompt delivery of equipment to any region of Kazakhstan
