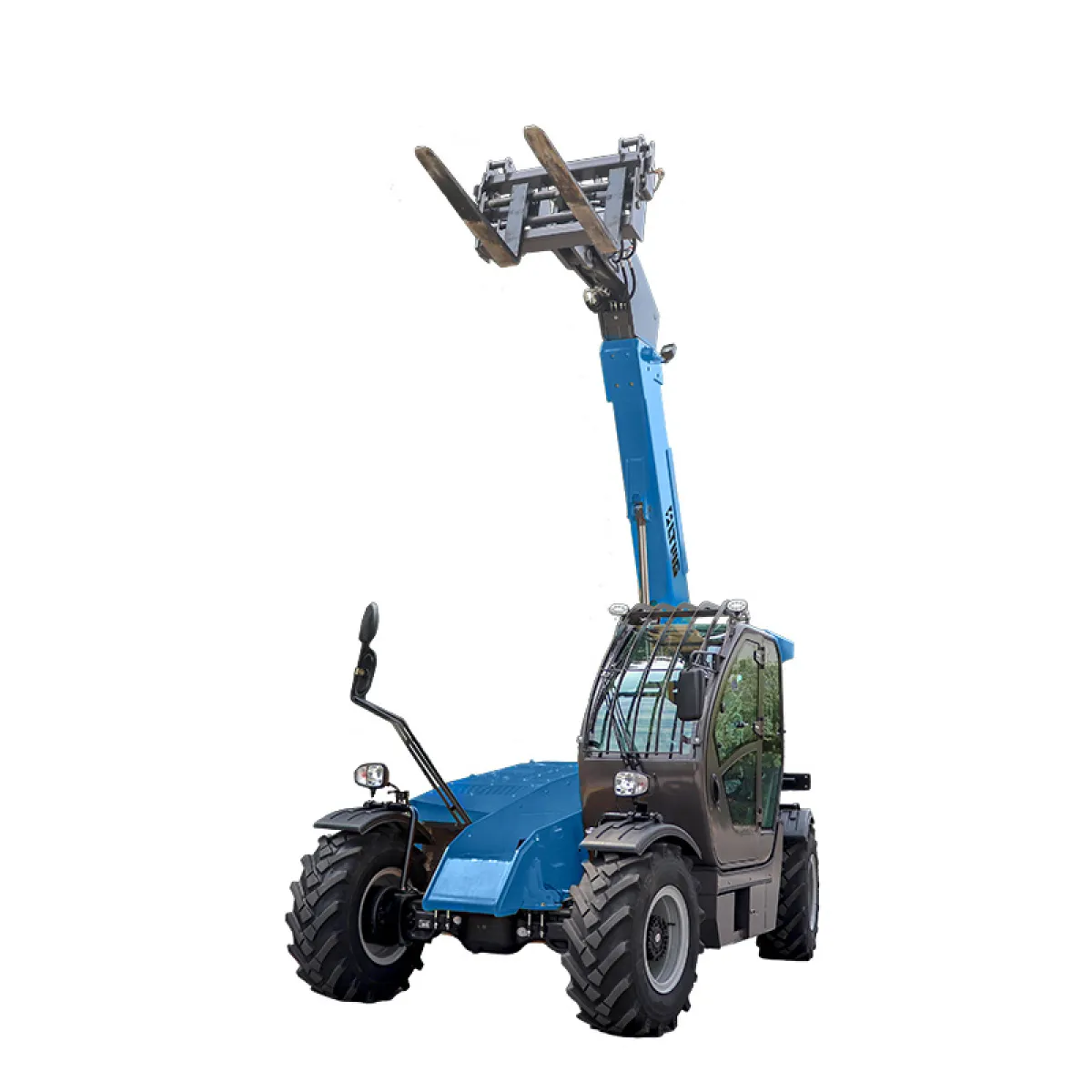

Telescopic loader LTMG FT35

Основные параметры

Model	FT35
Type of equipment	Telescopic loader
Max. lifting capacity	3 500 кг
Max. lifting height, mm	7 000
Max. reach, mm	3 200
Total length to carriage, mm	4 650
Length to the front of the forks, mm	5 870
Overall dimensions (W×H), mm	2 200 × 2 550
Wheelbase, mm	3 150
Minimum ground clearance, mm	350
Cabin width, mm	840
Overcome slope, %	12°
Drop Angle	11,4°
Min. turning radius (outer)	4 250
Weight without load (with forks), kg	7 600
Length × width × fork section, mm	1 220 × 125 / 50
Rising time, s	10
Lowering time, s	7
Extension time, s	12
Retraction time, s	8,6
Upper slope (filling), s	4,8
Reset (unloading), s	3,4
Engine make	Yuchai
Max. fuel sulfur content	5 000 ppm
Traction force (with load)	10,000 daN
Transmission type	Torque converter
Number of gears (forward / reverse)	2 / 2
Maximum speed, km/h	35
Hydraulic pump type	Gear
Hydraulic flow	100 l/min
Noise level in the workplace (LpA)	82 dB
Ambient noise level (LwA)	105 dB
Vibration on hands/arms	< 2.50 m/s²

Двигатель

Двигатель

Ecological engine class	National II (PRC)
Engine model	YCD4M22T-105
Number of cylinders / volume	4 / 4 400 cm³
Engine power, kW	103 hp / 77.3 kW
Max. torque / engine speed	400 Nm / 1 400 rpm

Топливный бак

Fuel tank, l

95

Шасси

Колёсная ходовая

Tire markings	Pneumatic
Standard tires	16/70-20

Тормозная система

Parking brake	Automatic with pneumatic drive
Brake system	Multi-disc wet on front and rear axles

Гидросистема

Гидравлический бак

Engine oil tank capacity, l	5,5
Hydraulic oil tank capacity, l	70
