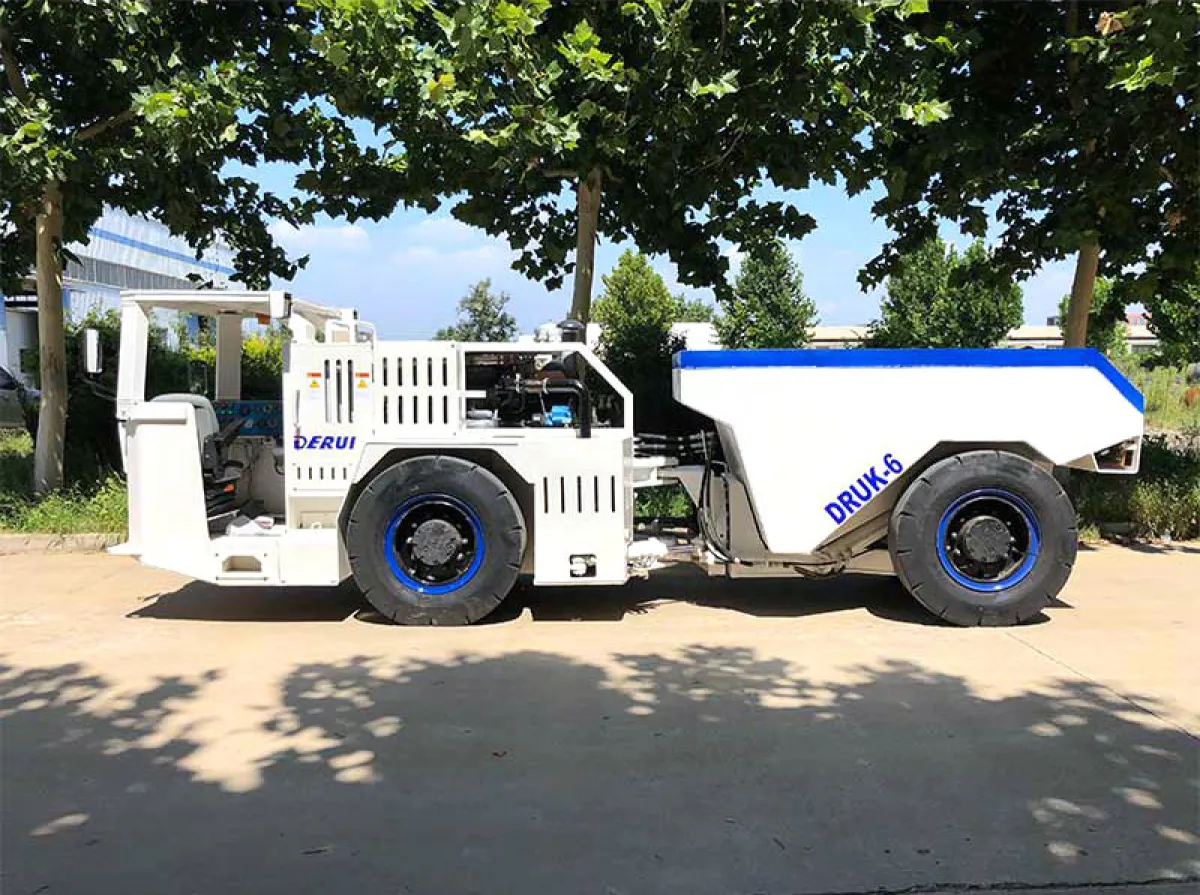

DERUI DRUK-6/6.8/8

Основные параметры

Model	DRUK-6/6.8/8
Drive type	Diesel
Machine type	Mine underground dump truck
Body volume, m³	3,3
Rated load capacity	6 800 кг (6,8 т)
Operating weight, kg	8 900
Overall dimensions (L×W×H), mm	6 090 × 1 500 × 2 000
Application conditions (mine section)	Transport in tunnels from 3 × 3 m (as described by TechnoEra)
Number of gears	4 forward / 3 reverse (as described by TechnoEra)

Двигатель

Двигатель

Engine model	Deutz BF4M1 013CEC
Engine power, kW	115 (156 hp; as described by TechnoEra)
Number of cylinders	4
Ecological engine class	Euro II; add. neutralization of DOC and POC (as described by TechnoEra)

Шасси

Трансмиссия

Torque converter	Hydrodynamic (GTR), Dana
Transmission	Automatic hydrodynamic, Dana
Front and rear axle	Bridges Derui; No-Spin differentials (as described by TechnoEra)

Тормозная система

Brake system (working)	Oil-immersed discs, hydraulic drive on all 4 wheels (TechnoEra)
Parking brake	SAHR, negative type (TechnoEra)

Кабина оператора

Cabin

Open or closed glazed; ROPS/FOPS; optional heater and air conditioner (TechnoEra)
