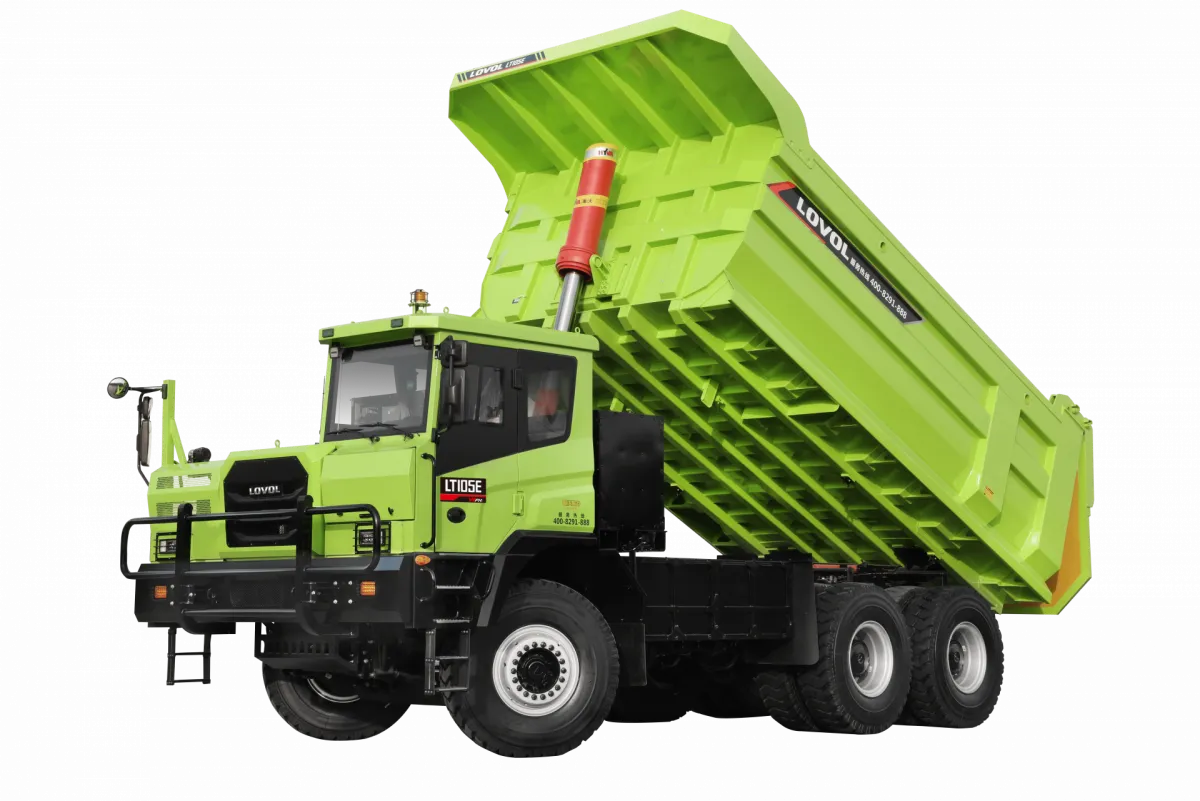

Mining dump truck LT105E
Electrical
Mining dump truck LT105E
Gross vehicle weight
105 000
Vehicle weight (curb), kg
38 500
Payload weight, kg
70 000
Overall dimensions (L×W×H), mm
9 950 × 3 750 × 4 200
Основные параметры
| Gross vehicle weight | 105 000 |
| Vehicle weight (curb), kg | 38 500 |
| Payload weight, kg | 70 000 |
| Overall dimensions (L×W×H), mm | 9 950 × 3 750 × 4 200 |
| Wheelbase, mm | 4 200 + 1 750 |
| Track, mm | 2 800 / 2 630 / 2 630 |
| Maximum speed, km/h | 40 |
| Overcome slope, % | 30 |
| Minimum turning diameter, m | 22 |
| Minimum ground clearance, mm | 345 |
Двигатель
Двигатель
| Electric motor model | TZ220XSWDM462 |
| Electric motor power, kW | 520 |
| Nominal engine speed, rpm | 12 000 |
| Max. torque, Nm at rpm | 960 (0–5 200) |
Платформа
| Body volume, m³ | 40 |
| Tipping mechanism | Front Lift-191 |
| Maximum tipping angle, ° | 48 |
Шасси
Трансмиссия
| Transmission | 4TR180 |
| Gearbox ratios | 15.491 / 10.812 / 7.594 / 4.073 |
| Maximum input torque of the gearbox, Nm | 1 840 |
Колёсная ходовая
| Drive axle - type | Central, two-stage with planetary gearbox in the hub and center differential lock |
| Drive axle - total gear ratio | 18.722 |
| Drive axle - rated load, kg | 40 000 |
| Drive axle - brake type | Cam drum brake |
| Front axle - rated load, kg | 25 000 |
| Front Axle - Brake Type | Cam drum brake |
| Bridge load (total) | 25 / 40 / 40 |
| Tire markings | 16.00R25 ★★★ |
| Rim (disc) model | 11.25-25 (18 holes) |
| Front suspension | Five-link hydropneumatic |
| Rear suspension | Balancer on steel leaf springs |
| Spring parameters (rear), mm | 30 / 120 / 15 (thickness/width/number of sheets) |
Тормозная система
| Travel brake | Double-circuit pneumatic drum brake |
| Parking brake | Pneumatic brake with spring energy accumulators and emergency braking |
| Assisted braking | Electric motor regeneration + electric eddy current retarder (retarder) |
| Brake system pressure, bar | 10 |
| Hill hold | 30 (up) / 20 (down) |
Рулевое управление
| Steering - type | Fully hydraulic steering |
| Steering - pressure, MPa | 17.5 |
| Steering - flow rate, l/min | 37.5 |
Электрооборудование
| Traction battery | 446.20 кВт h Lithium iron phosphate (LiFePO4) |
Кабина оператора
| Cabin | Left-hand drive, semi-floating narrow cab |
| Operator seat | Adjustment: up/down, forward/backward, backrest tilt |
