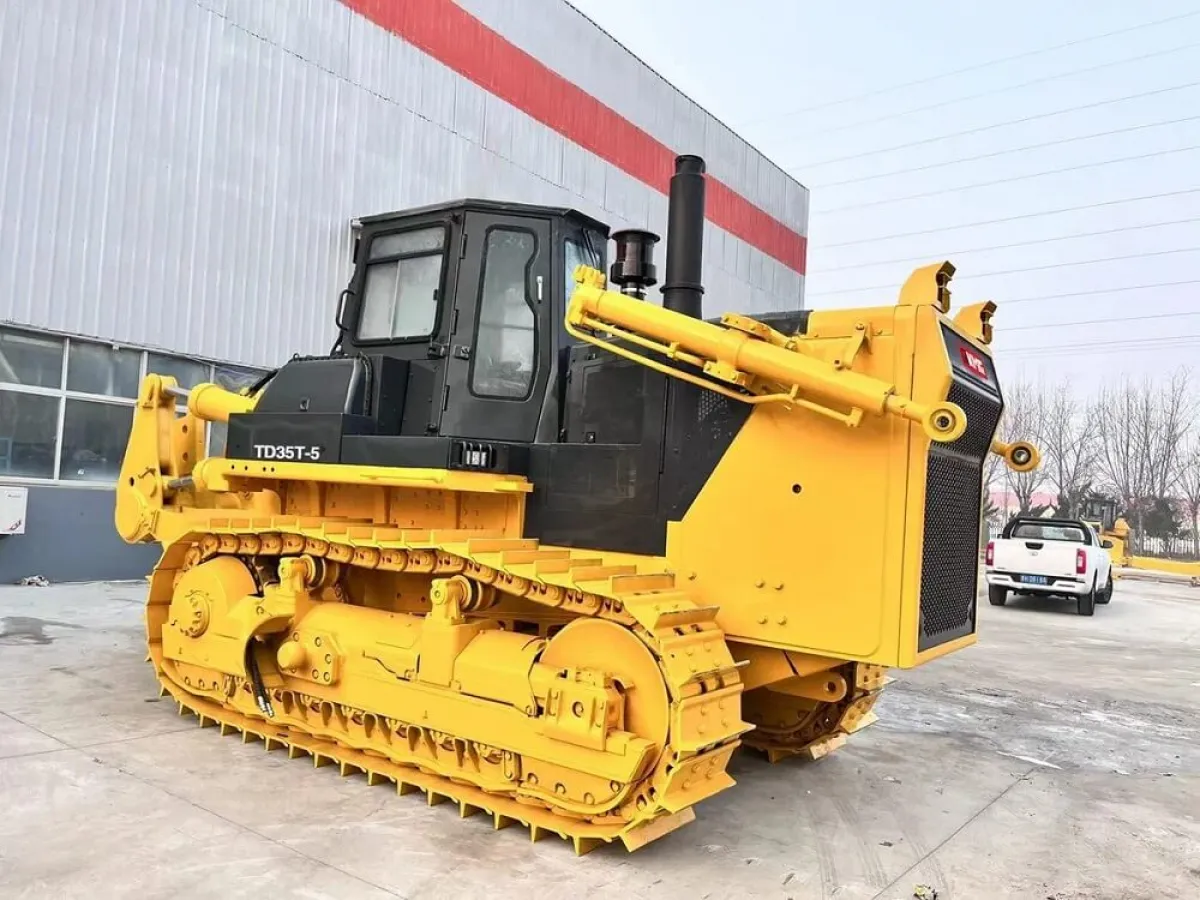

Bulldozer NorTop TD35T-5
Tracked
Bulldozer NorTop TD35T-5
Model
TD35T-5
Type of equipment
Bulldozer
Engine model
Cummins NTA855-C360S10
Engine type
Row; 4-stroke; water cooling; direct injection; OHV; turbodiesel
Основные параметры
| Model | TD35T-5 |
| Type of equipment | Bulldozer |
| Engine type | Row; 4-stroke; water cooling; direct injection; OHV; turbodiesel |
| Fuel consumption | 245 g/kWh |
| Main (central) drive | Conical spiral pair; splashing; single-stage reduction |
| Rotary coupling | Wet multi-disc; spring (normally closed); hydraulic control with manual override |
| Onboard brake | Wet belt floating; foot drive with hydraulic booster |
| Final drive | Two-stage cylindrical; splashing |
| Travel speed, high/low, km/h | 1st: 0–3.6; 2nd: 0–6.6; 3rd: 0–11.5 |
| Reverse speed, km/h | 1st: 0–4.4; 2nd: 0–7.8; 3rd: 0–13.5 |
| Chassis type | Swing semi-frame; truss beam; suspension with equalizer |
| Support rollers (each side) | 2 |
| Track rollers (each side) | 7 (5 single-breasted, 2 double-breasted) |
| Number of track tracks (each side) | 41 |
| Track shoe width, mm | 560 |
| Track pitch, mm | 228,6 |
| Working hydraulic cylinders | Ø 140 mm × 2 pcs. (double acting) |
| Straight blade - drawing volume, m³ | 10 |
| Straight blade - productivity (40 m), m³/h | 580 |
| Straight blade - width × height, mm | 4 130 × 1 590 |
| Straight blade - max. recess depth / skew, mm | 560 / 1 000 |
| Angle blade - drawing volume, m³ | 6 |
| Angle blade - productivity (40 m), m³/h | 350 |
| Angle blade - width × height, mm | 5 000 × 1 140 |
| Angle blade - max. recess depth / skew, mm | 630 / 500 |
| Semi-U blade - drawing volume, m³ | 11,9 |
| Semi-U blade - productivity (40 m), m³/h | 690 |
| Semi-U blade - width × height, mm | 4 130 × 1 710 |
| Semi-U blade - max. recess depth / skew, mm | 560 / 1 000 |
Двигатель
Двигатель
| Engine model | Cummins NTA855-C360S10 |
| Nominal engine speed, rpm | 2 000 |
| Engine power, kW | 257 |
| Number of cylinders | 6 × 139,7 × 152,4 mm |
| Working volume, l | 14,01 (14 010 cm³) |
| Max. torque, Nm at rpm | 1 440 / 1 400 |
Шасси
Трансмиссия
| Torque converter | Three-element; single stage; single-phase |
| Transmission | Planetary; multi-disc clutch; hydromechanical switching; forced lubrication |
Гидросистема
Гидронасос
| Working pressure, mPa | 14 |
| Pump type | Gear |
| Max. hydraulic pump flow, l/min | 355 (at 1 795 rpm) |
