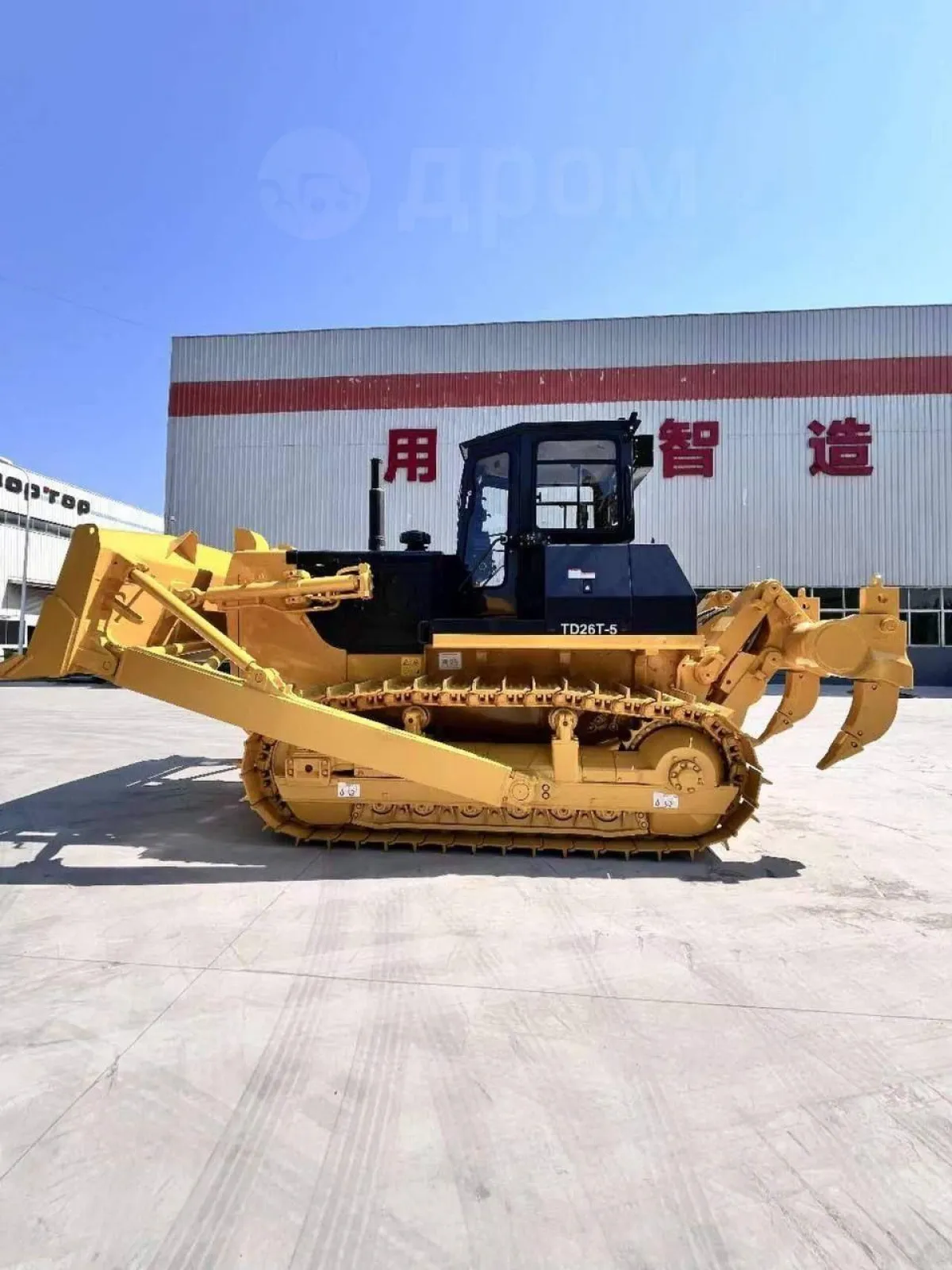

Bulldozer NorTor TD26T-5

Tracked

Model TD26T-5

Type of equipment Bulldozer

Operating weight, kg 23 500 кг

Operating weight (with single-shank ripper) 25,9 т

Buy on lease Buy in installments

Model	TD26T-5
Type of equipment	Bulldozer
Operating weight, kg	23 500 кг
Operating weight (with single-shank ripper)	25,9 т
Overall dimensions (L×W×H), mm	6 810 × 3 735 × 3 350
Minimum turning radius	3,3 м
Blade capacity (m³/h when transporting 40 m)	300
Length of track support surface (grounding), mm	2 730
Minimum ground clearance, mm	405
Blade lift angle	30°
Track type	Segmental with single grouser
Number of track tracks (each side)	38
Track track width, mm	560
Track width, mm	2 000
Track rollers (each side)	2 top / 6 bottom (according to advertisement)
Maximum traction force, kN	203
Blade type	With straight slope
Bucket volume, m³	6,4
Knife length × knife height, mm	3 735 × 1 310
Knife lifting height, mm	1 210
Knife penetration depth, mm	540
Max. knife tilt, mm	>735
Ripper type	Single-tooth
Ripper weight, t	2,1
Soil loosening depth, mm	695
Ripper lifting height, mm	515
Travel speed, high/low, km/h	F1: 3,6; F2: 6,5; F3: 11,2
Reverse speed, km/h	R1: 4,3; R2: 7,7; R3: 13,2
Oil pump type	Gear
Coolant capacity, l	79
Engine oil volume, l	45

Fuel tank capacity, l

450

Advantages of purchasing from us

Full warranty from the manufacturer with service support in Kazakhstan

Flexible financing terms - leasing and installments

Own service center and warehouse of original spare parts

Prompt delivery of equipment to any region of Kazakhstan
