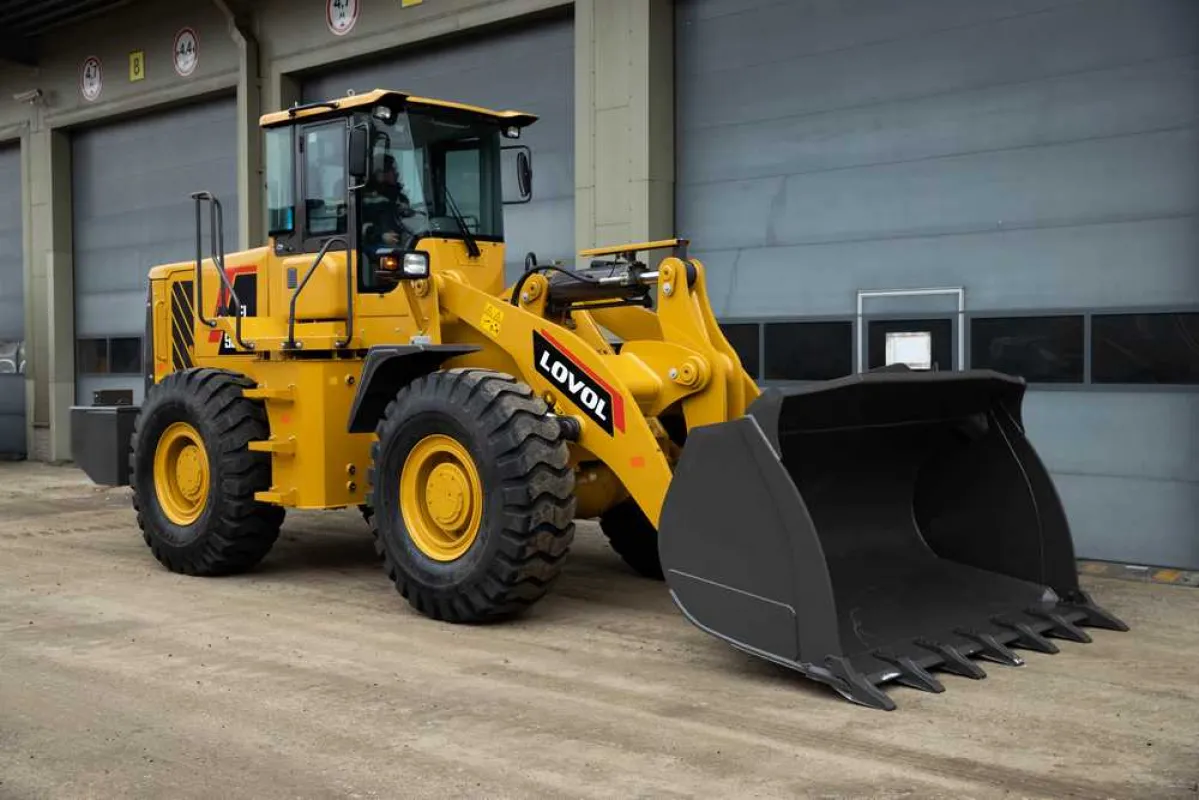

Front loader FL955F-II (construction)
Front wheels
Front loader FL955F-II (construction)
Engine Manufacturer
Weichai
Engine model
WD10G220E23
Environmental standard
Euro II
Number of cylinders
6 (126×130 мм)
Основные параметры
| Bucket volume, m³ | 3 |
| Operating weight, kg | 16 620 |
| Rated load capacity | 5 |
| Max. traction force, kN | 160 |
| Breakout force, kN | 175 |
| Overcome slope, % | 30° |
| Unloading angle at maximum lifting and unloading, ° | 44 |
| Height of the hinge axis at maximum lift, mm | 4 065 |
| Lifting height, mm | 5 470 |
| Angle of rotation of the bucket back on the ground, ° | 44 |
| Max. unloading height, mm | 3 065 |
| Max. excavation distance, mm | 1 160 |
| Minimum ground clearance, mm | 490 |
| Track width, mm | 2 250 |
| Wheelbase, mm | 2 920 |
| Superstructure turning radius, mm | 6 850 |
| Overall dimensions (L×W×H), mm | 7 700×2 980×3 430 |
| Travel speed, high/low, km/h | 42 (max); forward/reverse gears 2/1; 1 lane: 13; 2nd lane: 42; rear: 17.5 |
| Torque transformation ratio | 4,02 |
| Drive axles - type of service brakes | Dry |
| Drive axles - wheel gear type | Planetary gearbox |
| Steering tire pressure, MPa | 0,3–0,32 |
| Pressure in drive tires, MPa | 0,28–0,3 |
| Steering pump | JHP2A080 |
| Swivel Configuration | Articulated |
| Turning radius along the wheel, mm | 5 620 |
| Frame rotation angle in each direction, ° | 35 |
| Steering cylinder (Ø×stroke), mm | 90×360 |
| Steering circuit flow, l/min | 162 |
| Steering safety valve pressure, MPa | 16 |
| PO - working pressure, MPa | 18 |
| RO - boom cylinder (Ø×stroke), mm | 160×812 |
| RO - bucket tipping cylinder (Ø×stroke), mm | 180×542 |
| Bucket control | Joystick |
| Joystick control pressure, MPa | 3,5 |
| Unloading time, s | 1,1 |
| Boom raising time, s | 5,6 |
| Full cycle time, s | 10,2 |
| Work equipment design | Six-bar hinge mechanism |
| Air conditioning - working environment | R134a |
| Air conditioner - cooling capacity, kW | 4,4 |
| On-board voltage, V | 24 |
| Headlight voltage, V | 24 |
| Axle filling, l | 25 / 25 |
| Brake fluid, l | 4 |
| Antifreeze, l | 51 |
| Axle differential | 1st class bevel gear, spiral teeth |
| Bucket dimensions (L×W×H), mm | 1 380×2 980×1 370 |
| Standard bucket weight, kg | 1 423 |
| Tipping load, kg | 11 000 |
| Tipping load when turning, kg | 10 000 |
| Boom length, mm | 2 845 |
| Super-extended boom length, mm | 3 040 |
| Height of the hinge axis at max. lifting super-extended boom, mm | 4 350 |
| Rear axle swing angle, ° | 11±1 |
| Min. turning radius (outer) | 5 950 |
| Cabin dimensions (L×W×H), mm | 1 640×1 900×1 645 |
| Cabin weight, kg | 310 |
| Refilling the transmission and torque converter, l | 53 |
Двигатель
Двигатель
| Engine Manufacturer | Weichai |
| Engine model | WD10G220E23 |
| Environmental standard | Euro II |
| Number of cylinders | 6 (126×130 мм) |
| Working volume, l | 9,726 |
| Max. torque, Nm at rpm | 980 |
| Engine power, kW | 162 at 2 000 |
| Air supply system | Turbocharging |
Моторное масло
| Engine oil capacity, l | 22 |
Топливный бак
| Fuel tank capacity, l | 270 |
Шасси
Трансмиссия
| Torque converter | Single stage, two phase, 4 elements |
Колёсная ходовая
| Tire markings | 23.5-25; 16/16 PR |
Коробка передач
| Gearbox Manufacturer | LOVOL / HANGCHI / SHANTUI |
| Gearbox model | Mechanical, planetary; 2/1 |
Тормозная система
| Brake system | Pneumohydraulic |
| Parking brake | Handbrake |
| Brake system pressure, bar | 0,784 |
Рулевое управление
| Steering - type | Merging of two pumps, load priority |
Гидросистема
Гидронасос
| Hydraulic pump model | CBGJ3 100-10 |
| Max. hydraulic pump flow, l/min | 352 |
Распределитель
| Distributor model | YGDF32 |
Гидравлический бак
| Hydraulic tank capacity, l | 174 |
Электрооборудование
| Battery | 2×6-QW-120 |
