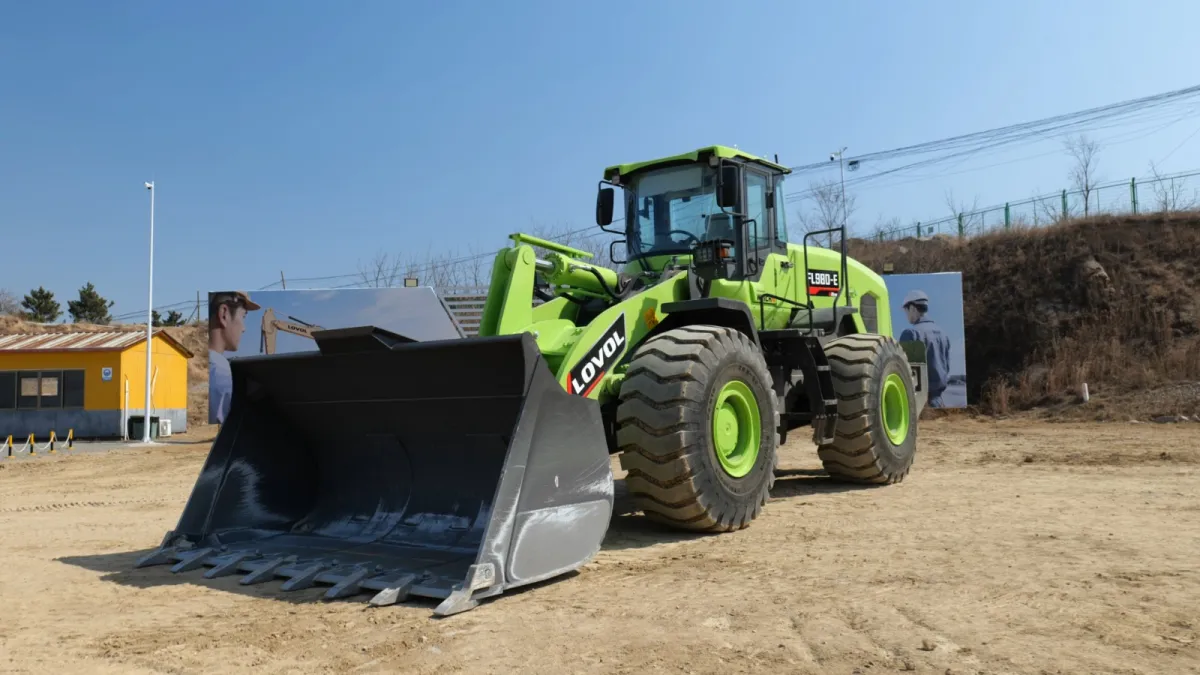

Front loader FL980-E Ultra

Основные параметры

Model	Lovol FL980-E Ultra
Type	Pure electric forklift
Rated load capacity	7 800 kg
Operating weight, kg	24 600 kg
Standard bucket volume, m³	5,0 m³ +3

Электрическая система (АКБ)

Battery Type	Lithium iron phosphate (LFP)
Nominal stored energy	421 kWh +3
Rated voltage	633,6 В

Ходовой двигатель

Engine type	Synchronous permanent magnet
Nominal/peak power	100 kW / 230 kW
Nominal/maximum torque	600 Nm / 1 250 Nm

Рабочий двигатель (гидравлика)

Engine type	Synchronous permanent magnet
Nominal/peak power	110 kW / 170 kW
Nominal/maximum torque	350 Nm / 700 Nm

Трансмиссия и ходовая часть

Gearbox type	Electronically controlled, shaft type +3
Number of gears	2
Drive axle type	Dry drive axle
Tire specification	26.5-25 28PR +3

Рабочие показатели

Maximum traction	210 kN
Maximum breakout force	200 kN
Dump height	3 550 mm
Unloading distance	1 250 mm
Speed ​​in 1st gear (forward/reverse)	14 / 14 km/h
Speed ​​in 2nd gear (forward)	40 km/h
Maximum lift angle	30°
Rotation angle	38°
Operating cycle time (sum of 3 phases)	10.6 s

Габариты

Length x Width x Height	9 400 x 3 240 x 3 600 mm +3
Wheelbase	3 600 mm +3
Track	2 420 mm +3

Заправочные емкости

Hydraulic tank	230 l
Antifreeze (engine cooling)	23 l
Antifreeze (battery cooling)	19 l
Transmission oil	20 l
Oil in axles	Front: 40 L / Rear: 38 L
