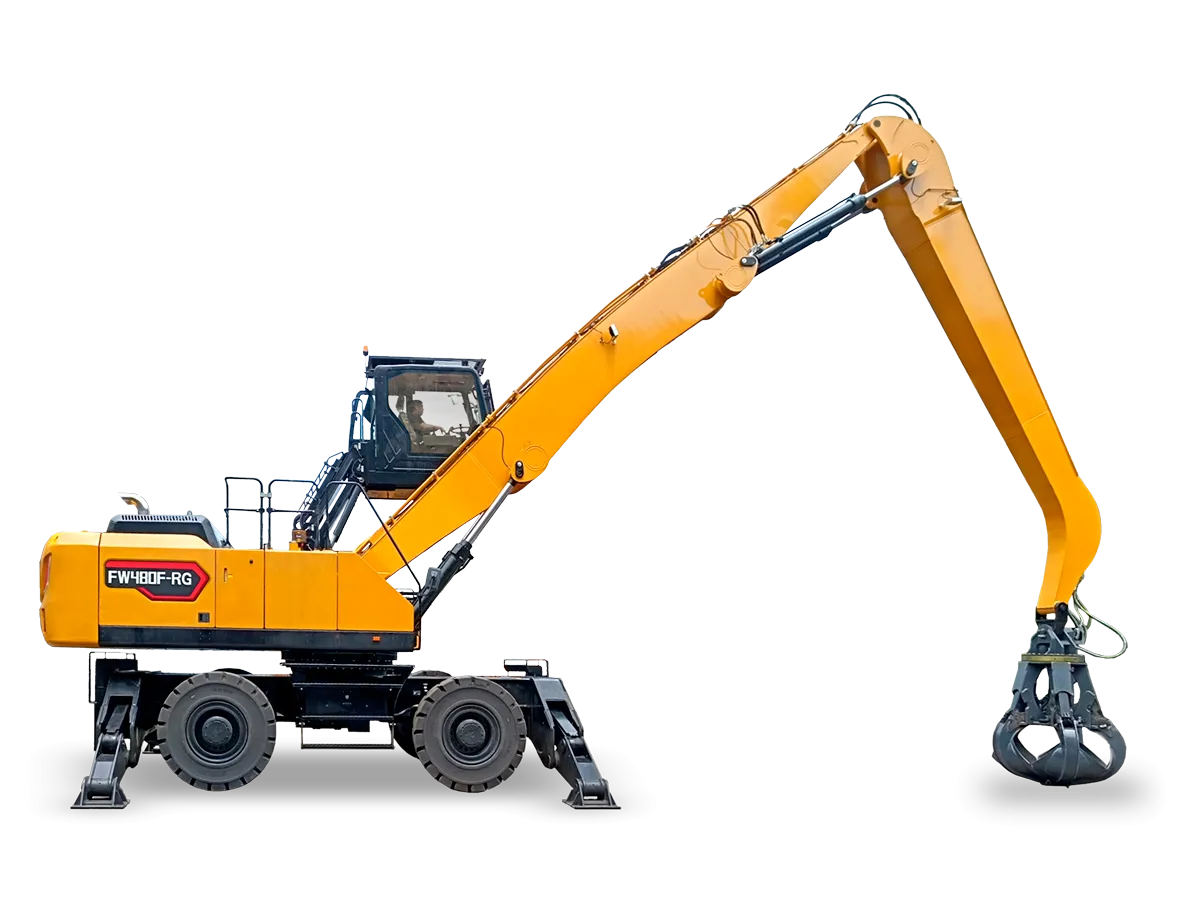

Loader FW480F-RG on wheels
Reloaders
Loader FW480F-RG on wheels
Engine model
WEICHAI WP10.5H
Max. torque, Nm at rpm
1 470
Operating weight, kg
42 700
Engine power, kW
246/335
Основные параметры
| Operating weight, kg | 42 700 |
| Grab volume, m³ | 0,6–0,8 |
| Maximum grip radius, mm | up to 18 560 |
| Maximum lifting height, mm | until 16 030 |
| Maximum grip depth, mm | up to 8 750 |
| Travel speed, high/low, km/h | 20 |
| Platform rotation speed, rpm | 8 |
| Wheelbase, mm | 3 200 |
| Minimum ground clearance, mm | 400 |
Двигатель
Двигатель
| Engine model | WEICHAI WP10.5H |
| Max. torque, Nm at rpm | 1 470 |
| Engine power, kW | 246/335 |
| Number of cylinders | 6 |
| Working volume, l | 10,5 |
Топливный бак
| Fuel tank capacity, l | 610 |
Гидросистема
Гидронасос
| Hydraulic pump manufacturer | Kawasaki |
| Hydraulic pump model | K7V180DTP |
| Max. hydraulic pump flow, l/min | 180 |
| Working pressure, mPa | 34,3 |
Гидравлический бак
| Hydraulic tank capacity, l | 316 |
