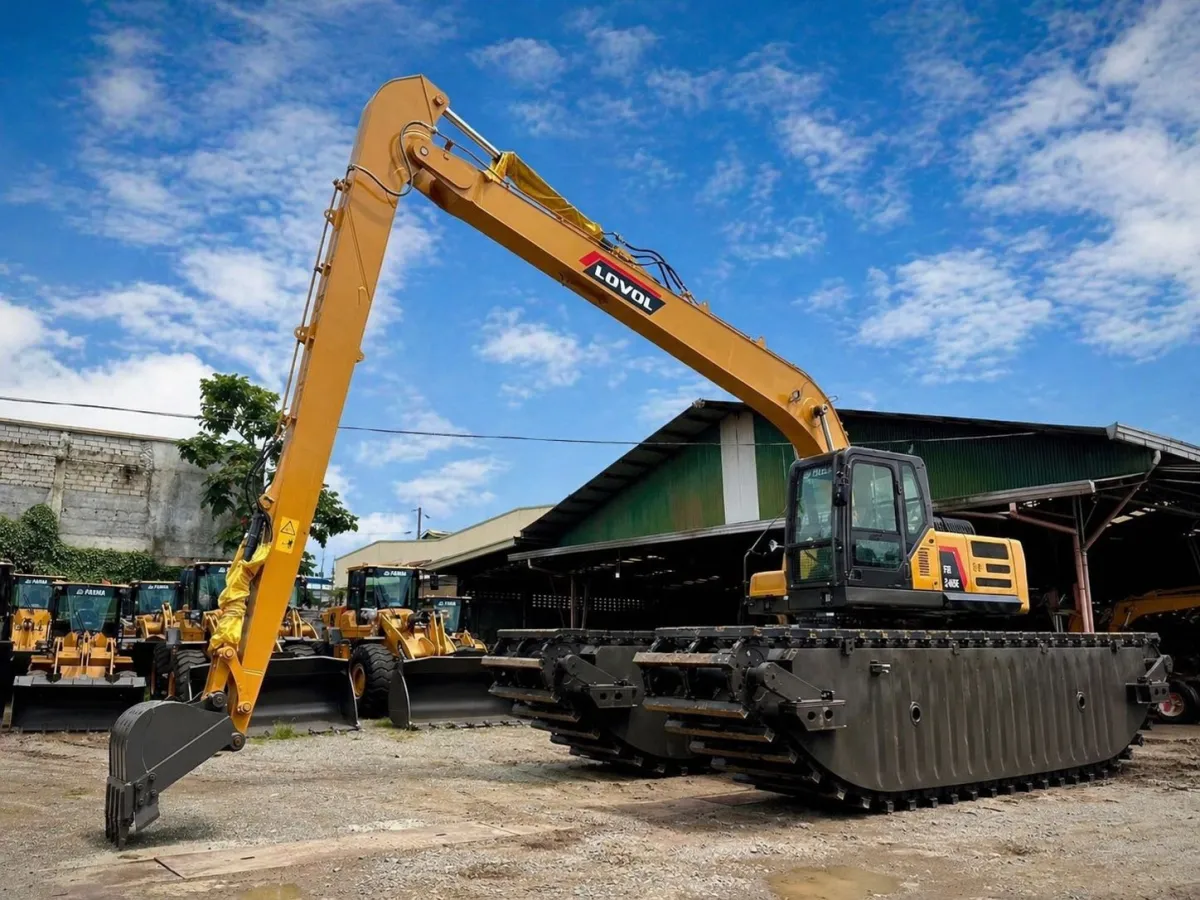

Amphibian FR245E2

Основные параметры

Operating weight, kg	23 100
Bucket volume, m³	1.2
Maximum digging depth, mm	6 510
Bucket cutting force, kN	156
Track width, mm	2 380
Extension of the rear part of the superstructure, mm	2 925
Number of road wheels, pcs.	9
Number of support rollers, pcs.	2
Specific ground pressure, kPa	45,7
Handle length, mm	2 925
Handle cutting force, kN	109
Boom length, mm	5 700
Chassis length, mm	4 465
Maximum cutting height, mm	10 190
Maximum excavation distance, mm	9 690
Track width, mm	2 980
Pressure of working equipment circuits, mPa	34,3
Overall height, mm	3 060
Pressure of the circuit with a higher load capacity, mPa	34,3/37,3
Control circuit pressure, mPa	3.9
Overall length, mm	9 580
Overall width, mm	2 980
Support length of track on the ground, mm	3 640

Двигатель

Двигатель

Engine power, kW	160 (at 2 000 rpm)
Working volume, l	6.8
Number of cylinders	6
Max. torque, Nm at rpm	1 000 (at 1 300 rpm)

Моторное масло

Engine cooling system, l

34

Топливный бак

Fuel tank capacity, l

385

Платформа

Counterweight weight, kg

5 700

Гидросистема

Гидронасос

Max. hydraulic pump flow, l/min

542

Поворотный мотор

Turning circuit pressure, mPa

24.5

Бортовой редуктор

Stroke circuit pressure, mPa

34.3

Гидравлический бак

Hydraulic tank capacity, l

220
