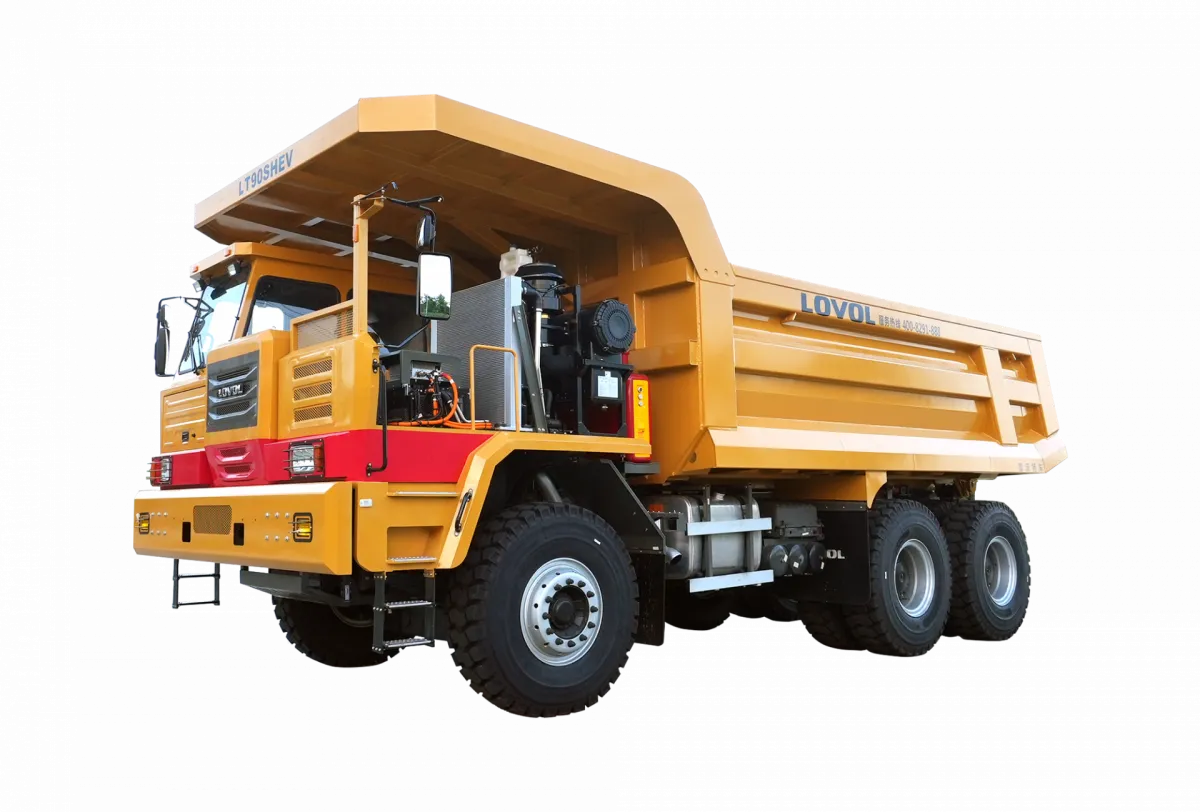

Mining dump truck LT90SHEV
Hybrid
Mining dump truck LT90SHEV
Operating weight, kg
90 000
Vehicle weight (curb), kg
37 200
Rated load capacity
60
Overall dimensions (L×W×H), mm
9 900×3 650×4 190
Основные параметры
| Operating weight, kg | 90 000 |
| Vehicle weight (curb), kg | 37 200 |
| Rated load capacity | 60 |
| Overall dimensions (L×W×H), mm | 9 900×3 650×4 190 |
| Wheelbase, mm | 4 300+1 780 |
| Track width, mm | 2 734 (front 2 610) |
| Travel speed, high/low, km/h | 45 (max) |
| Overcome slope, % | 30 |
| Minimum turning diameter, m | 26 |
| Minimum ground clearance, mm | 390 |
| Bridge load (full), t | 20 / 35 / 35 |
| Clutch | — |
| Gearbox - gear ratios | 15,491 / 10,812 / 7,594 / 4,073 |
| Gearbox - max. input torque, Nm | 1 840 |
| Air filter | Multi-stage dust |
| Radiator | Lamellar-ribbed |
| Tilting mechanism - nominal pressure, MPa | 20 |
| Seat | Shock-absorbing; adjustable up/down, forward/backward, back angle |
| Frame | High strength flexible 1 200×450×130 (12+1 2+8) |
| Body | 6 600×3 300×1 550 мм; side D16 (NM400), bottom B10 (T700) |
| Disk model | 11.25-25-12 |
| Electrical equipment | Single-wire 24 В, minus to ground |
| Launch | Key |
| Generator power, kW | 300 |
| Traction motor | 4×130 кВт; controller WMC21×2 |
| Electricity consumption, kWh | 40 |
Двигатель
Двигатель
| Engine Manufacturer | Weichai |
| Engine model | WP12G460E310 |
| Engine power, kW | 338 at 2 100 |
| Max. torque, Nm at rpm | 2 000 / (1 200–1 600) |
Топливный бак
| Fuel tank capacity, l | 420 |
Платформа
| Tipping mechanism | Front lift-196 |
| Maximum tipping angle, ° | 46 |
| Body volume, m³ | 32 |
Шасси
Колёсная ходовая
| Drive axle - type | Central, side planetary two-stage gearbox with center differential lock |
| Drive axle - total gear ratio | 18,385 |
| Drive axle - rated load, kg | 35 000 |
| Drive axle - brake type | Drum cam |
| Front axle - rated load, kg | 20 000 |
| Front Axle - Brake Type | Drum cam |
| Front suspension | Longitudinal leaf springs 20/100/13 |
| Rear suspension | Balancer on leaf springs 32/100/13 |
| Tire markings | 16.00R25 ★★★ |
Коробка передач
| Gearbox model | 4TR180 |
Тормозная система
| Travel brake | Double-circuit pneumatic drum |
| Parking brake | Spring-energy accumulating air brake with emergency braking |
| Assisted braking | Engine exhaust brake + WEVB |
| Brake system pressure, bar | 10 |
| Hill hold | 30% (up) / 20% (down) |
Рулевое управление
| Steering - type | Fully hydraulic |
| Steering - pressure, MPa | 17 |
| Steering - flow rate, l/min | 40 |
Электрооборудование
| Traction battery | Lithium titanate; 60 кВт h |
Кабина оператора
| Cabin | Right-hand drive, semi-floating, cabin tilt forward 46° |
